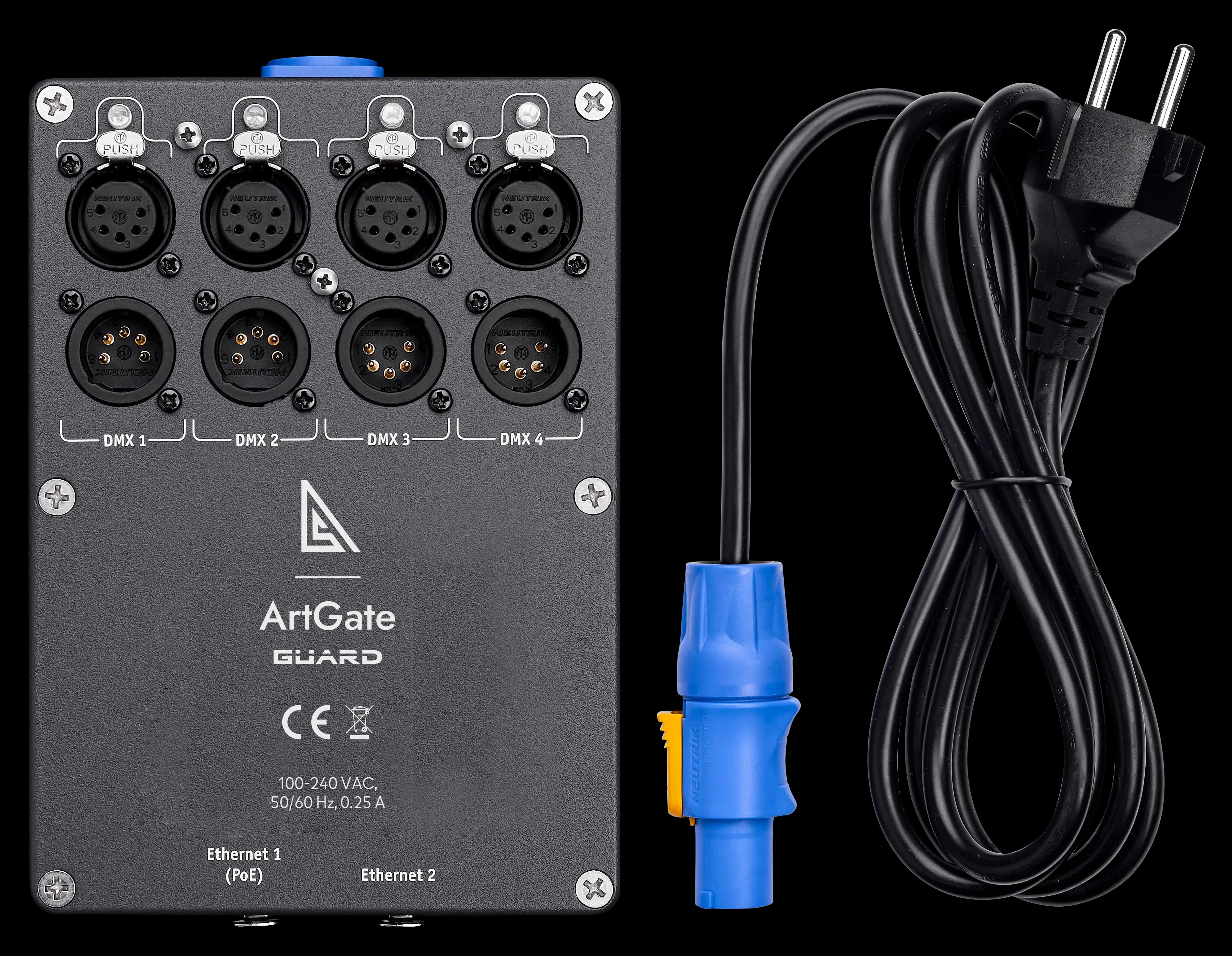

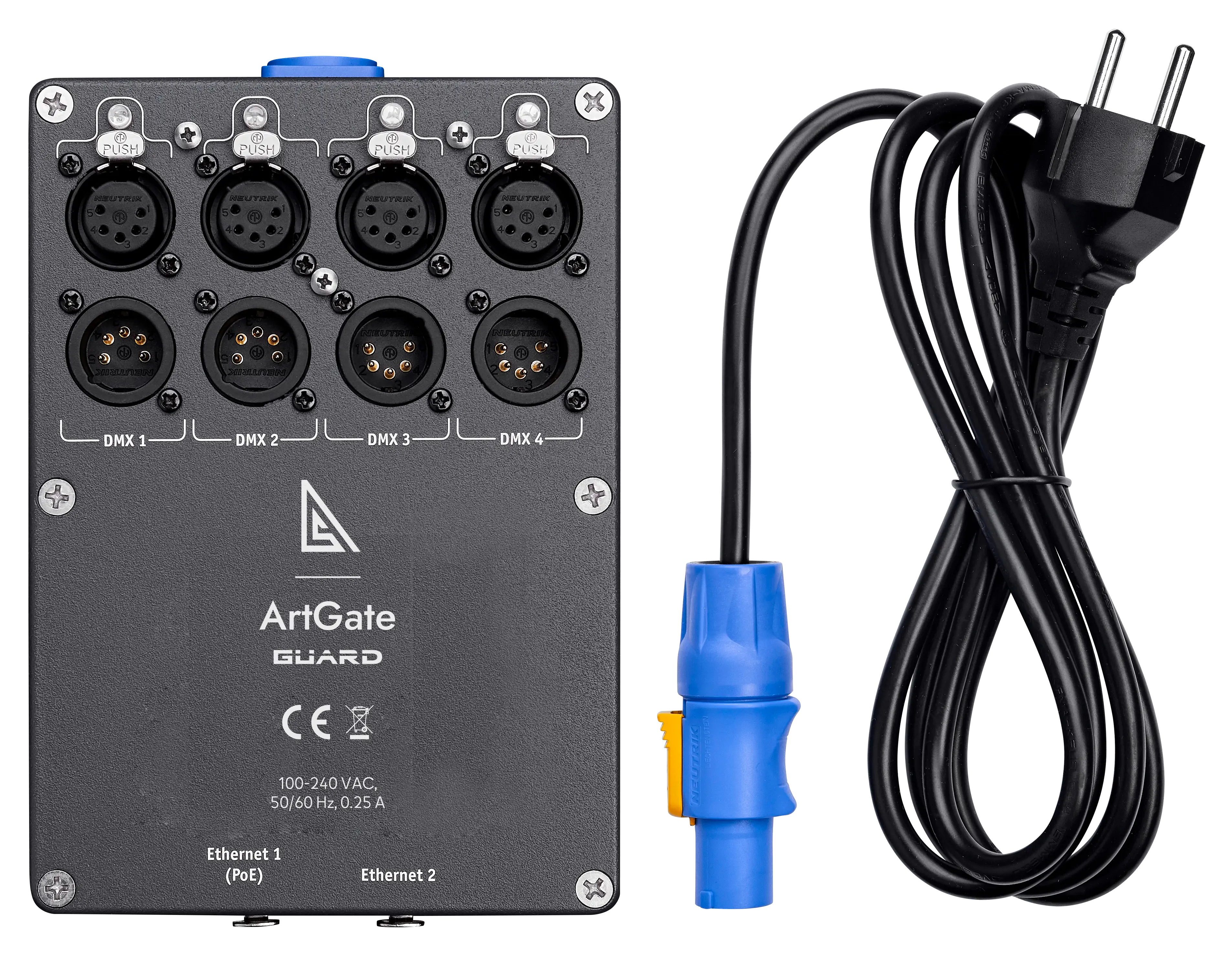

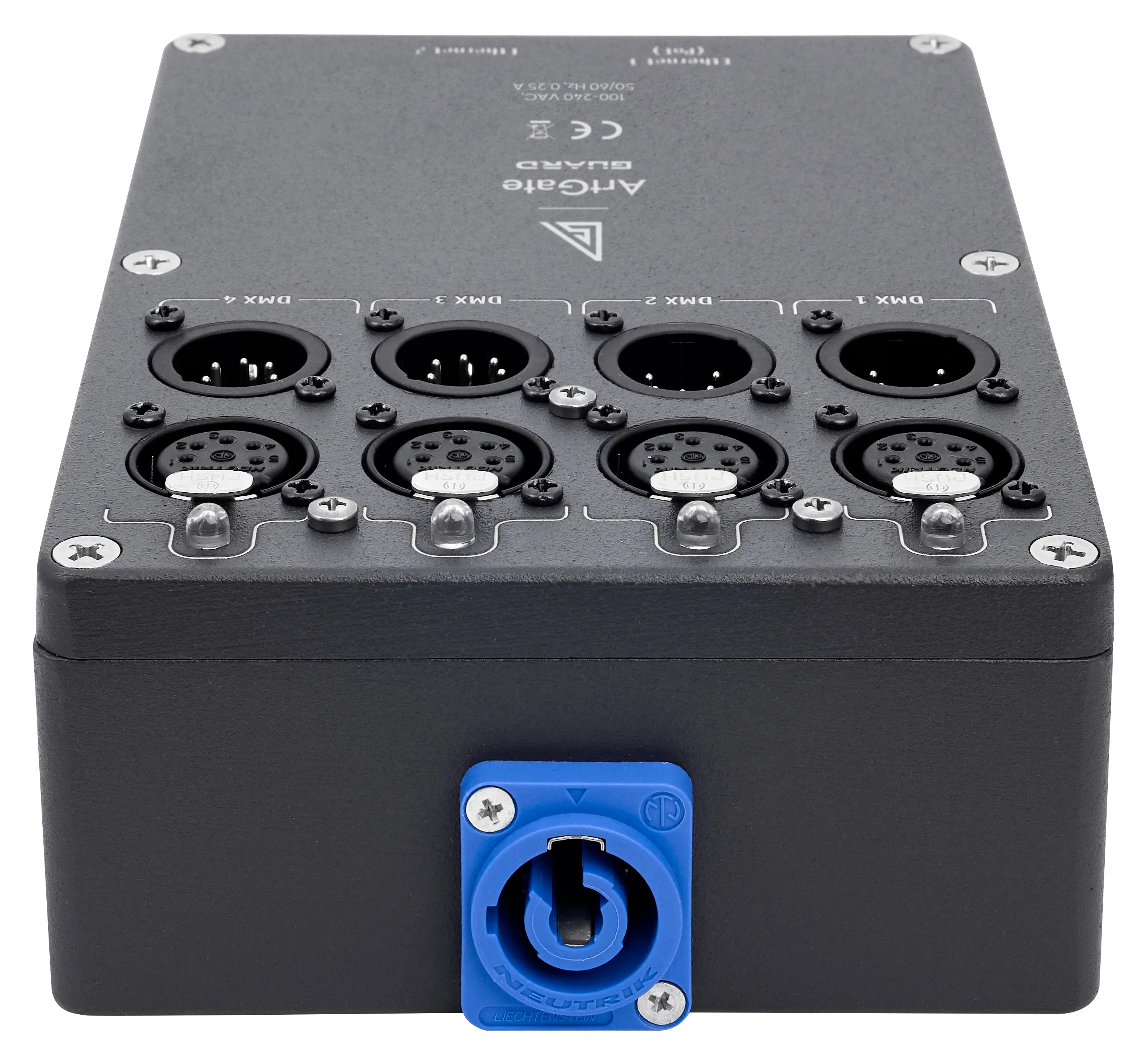

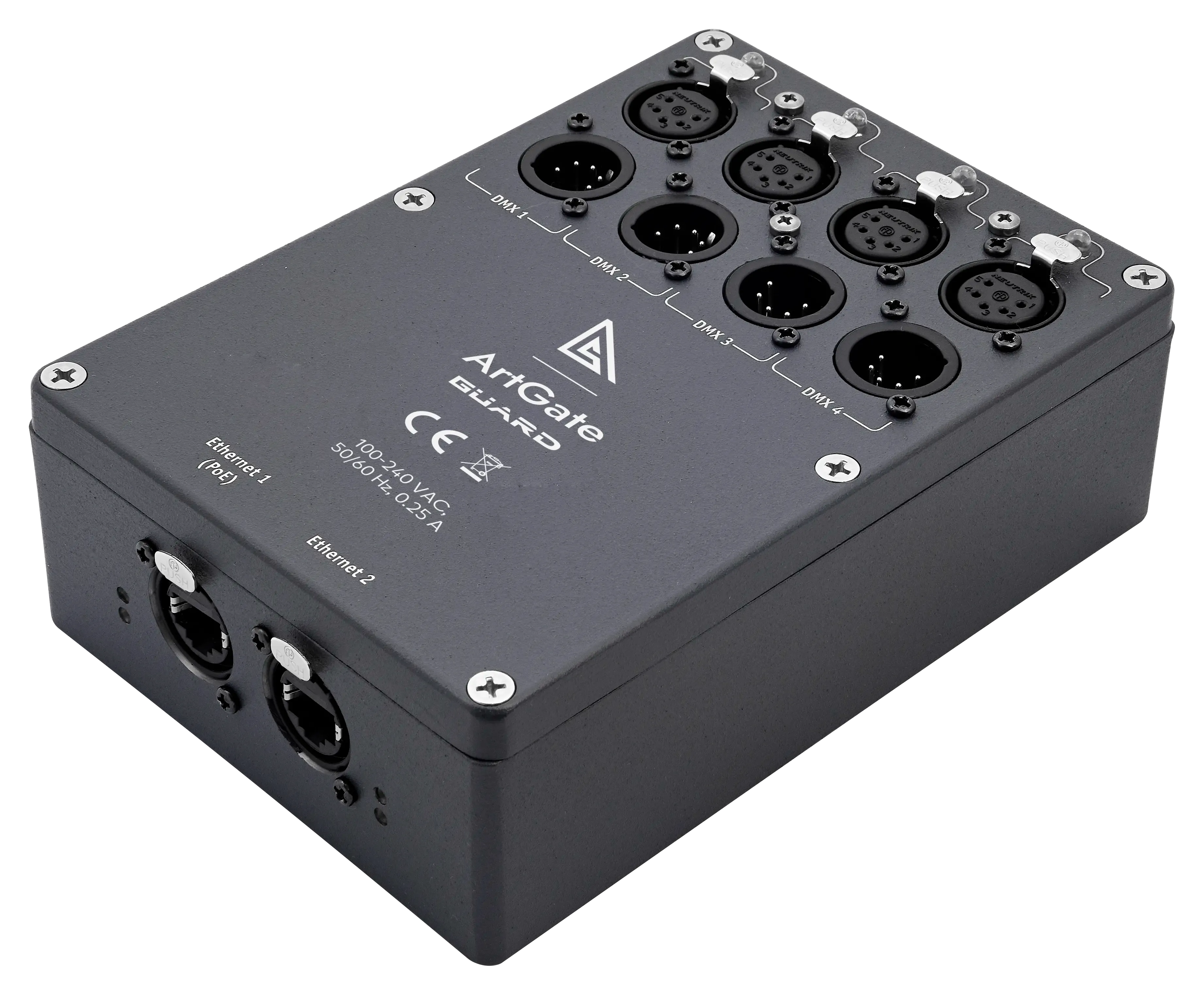

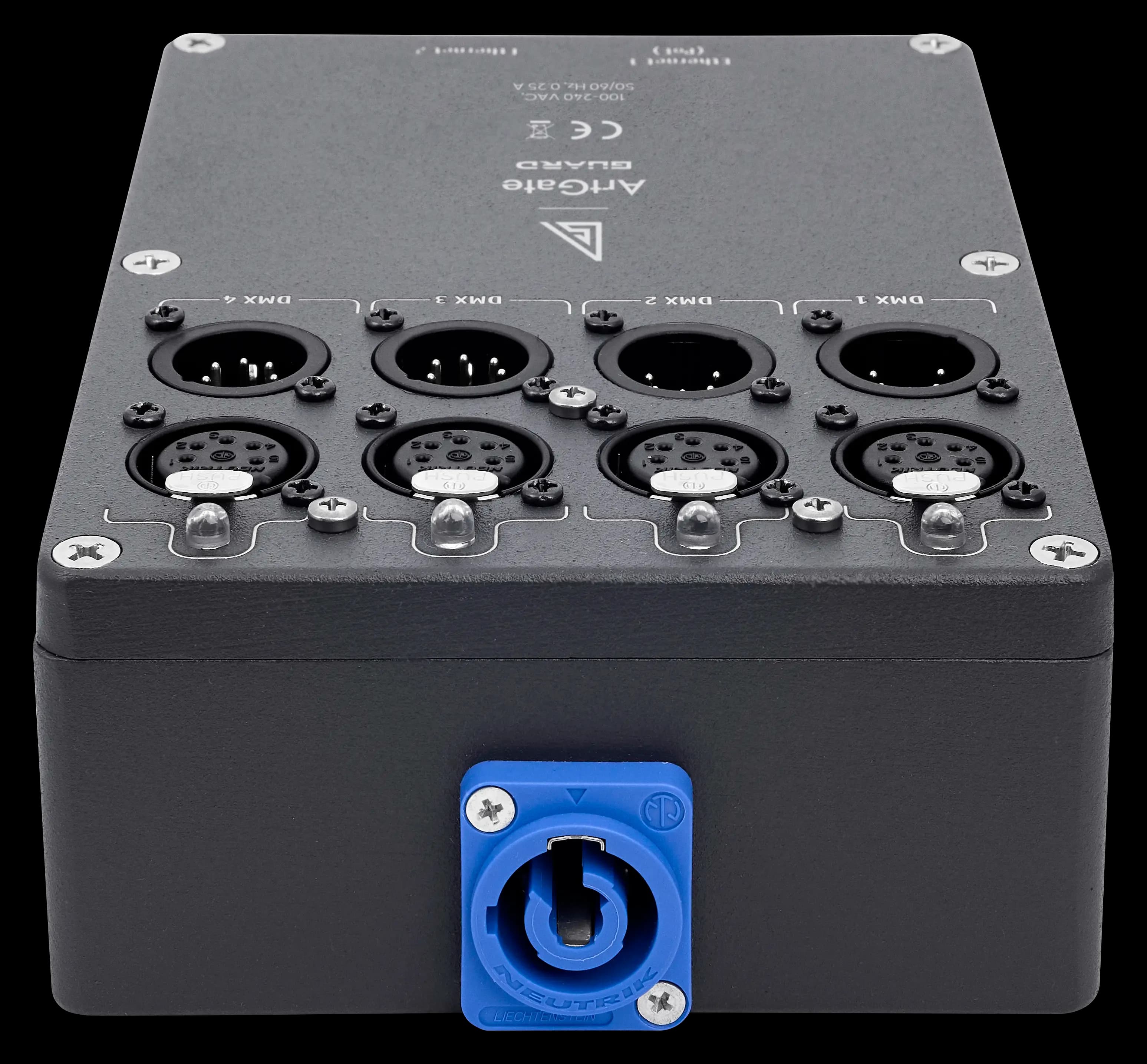

ArtGATE Guard
Bidirectional DMX/Ethernet converter with four optically isolated DMX ports, integrated 2-port Ethernet switch, PoE support, and full RDM functionality
ArtGATE Guard operates as a bidirectional converter between Ethernet-based lighting networks (ArtNet, sACN) and DMX512 lighting control systems.
It supports DMX512, ArtNet (1–4), sACN (Draft/Release), KiNet (v1/v2), and RTTrPL, enabling flexible combinations of signal transmission and reception across the network.
The device can be powered redundantly — either via 100–315 V AC mains through a Neutrik PowerCON TRUE1 connector or via PoE (Power over Ethernet, IEEE 802.3af standard).
Configuration is available through the built-in web interface or compatible third-party ArtNet software.
ArtGATE Guard is designed
Minimal load time and fast recovery — thanks to an integrated microcontroller, the device restores operation within 1–2 seconds after a short power loss .
Master IP that never gets lost — stable network identity under any reboot or connection scenario.
Natural heat convection — fanless design without ventilation slots ensures complete protection against dust and smoke, extending product lifespan.
Maximum surge protection — optimized power system for voltages from 100 to 315 V AC.
Full galvanic isolation on all DMX ports for complete electrical safety.
Configurable DMX port address for flexible network integration.
- Mechanical
Enclosure: solid case
Material: aluminium
Dimensions, mm: 182 (L) x 59,4 (H) x 121 (W)
Weight: 1.2 kg
Installation: surface, truss- Power & Electrical
Power supply: ~ 100-240 V, 50/60 Hz, PoE
Max power consumption: 5W
Fuse: 0.5 A- Environment
Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: IP 54
Certificates: CE compliant, RoHS
Warranty: 60 months- Control / Data Connections
Supported protocols: ArtNet (1,2,3,4) SACN (draft, release), KiNet (v1, v2), RTTrPL
Refresh rate DMX data: 44 Hz
- Inputs / Outputs
DMX IN: 2 or 4 XLR(3/5/etherCON)M
DMX OUT: 2 or 4 XLR(3/5/etherCON)F
Ethernet port: 2 (10/100 Base-TX), PoE
Ethernet connectors: RJ-45/etherCon- Configuration / Indication
Configuration: web interface, third-party settings
Indicators: LED, for DMX and Ethernet- Package Contents
ArtGATE Guard
Power cable (optional)
