DITRA LiWAVE
Cabinet Radio Gateway for Individual Luminaire Management

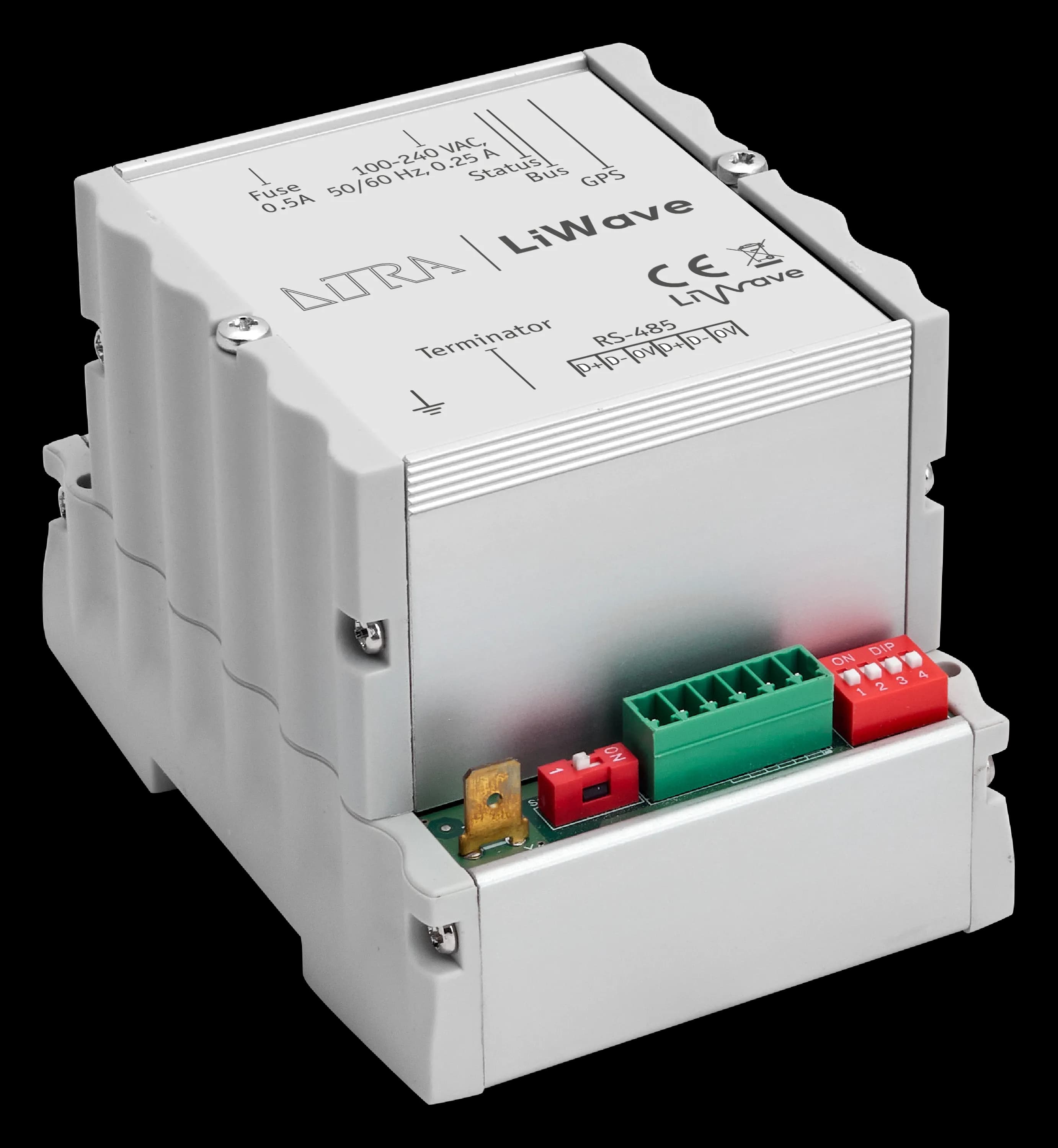

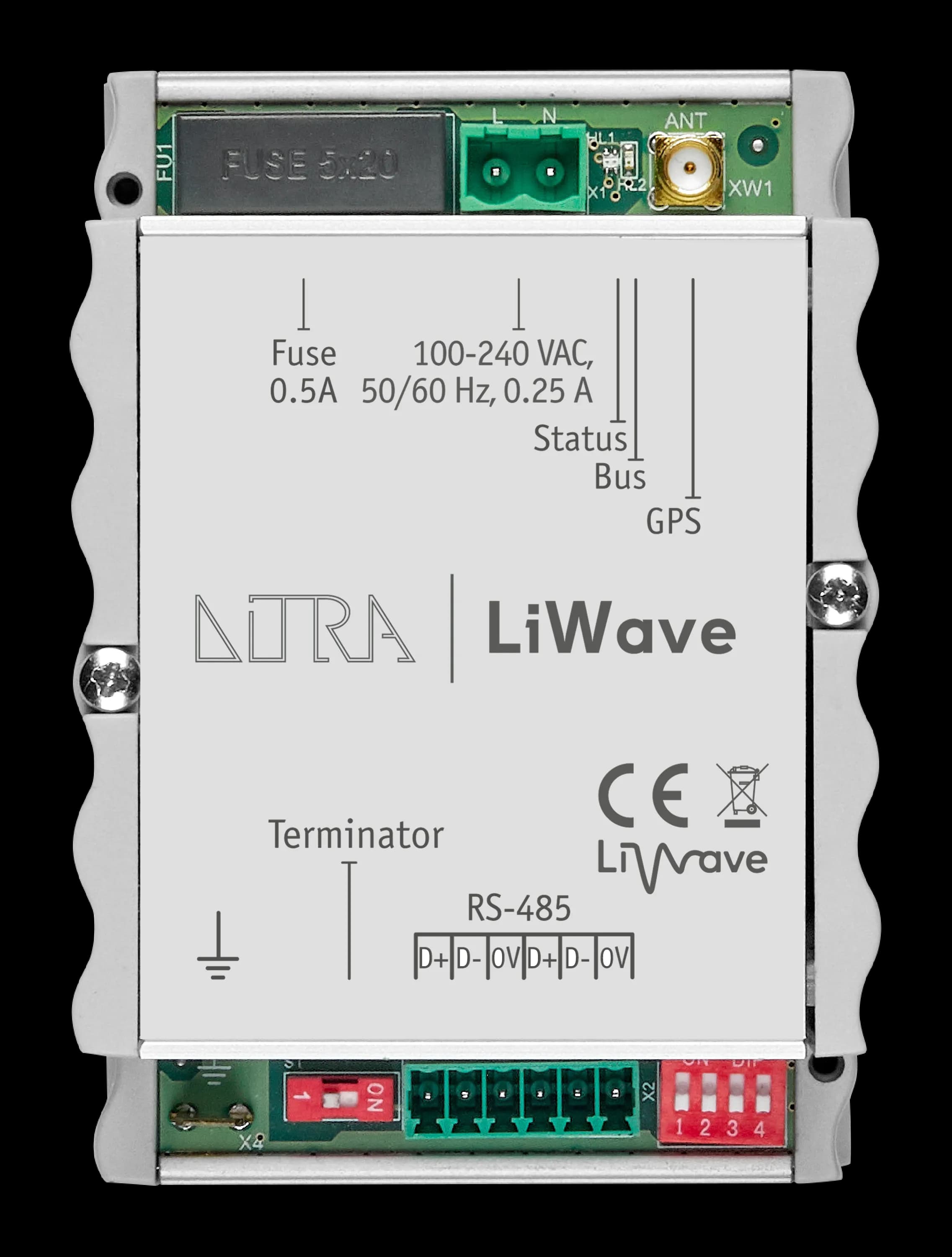

DITRA LiWAVE – Wireless Module for Remote Luminaire Control
DITRA LiWAVE is an add-on module designed for individual remote control of luminaires equipped with LiWAVE nodes. It operates wirelessly via an 800-950 MHz radio channel, enabling seamless communication and management of street lighting systems.
The module is installed alongside the DITRA CORE PRO (Central Gateway) in existing lighting control cabinets and connects to the central controller via an RS-485 interface. Acting as a master device, it facilitates data transmission to and from wireless slave modules, ensu
Individual control and power regulation of discharge lamps with an electronic ballast and a built-in LiWAVE module
Supports individual control and power regulation of LED lamps with a built-in LiWAVE module
Connects to DITRA CORE PRO via RS-485 interface
Features full galvanic isolation of the RS-485 interface
Equipped with a built-in power supply operating at ~220 VAC
- Connectors
Terminal blocks 15EDGV
- Data exchange
ISM band 868/915 MHz
- Max output power
16 dBm
- Serial interface
RS-485
- Input Voltage
~100-270 VAC, 50/60 Hz
- Operating Temperature
-40…+70°C
- IP Rating
IP20
- Dimensions, mm
72(D) x 105(H) x 75(W)
- Mounting
DIN rail in the power cabinet or waterproof box
