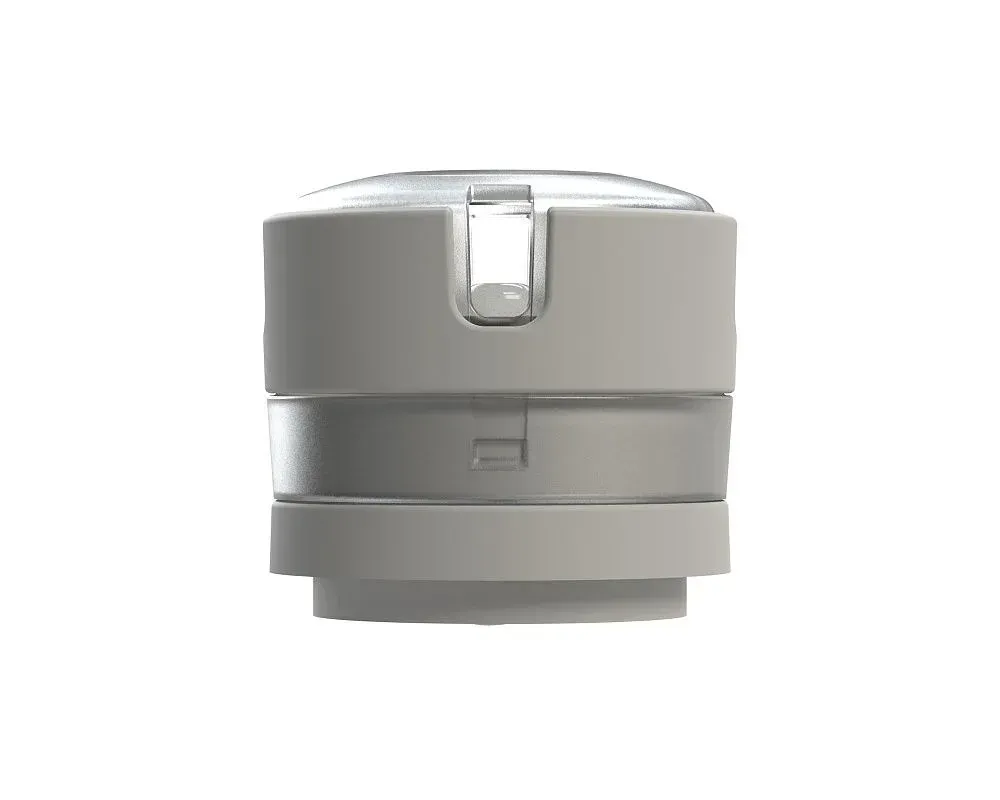

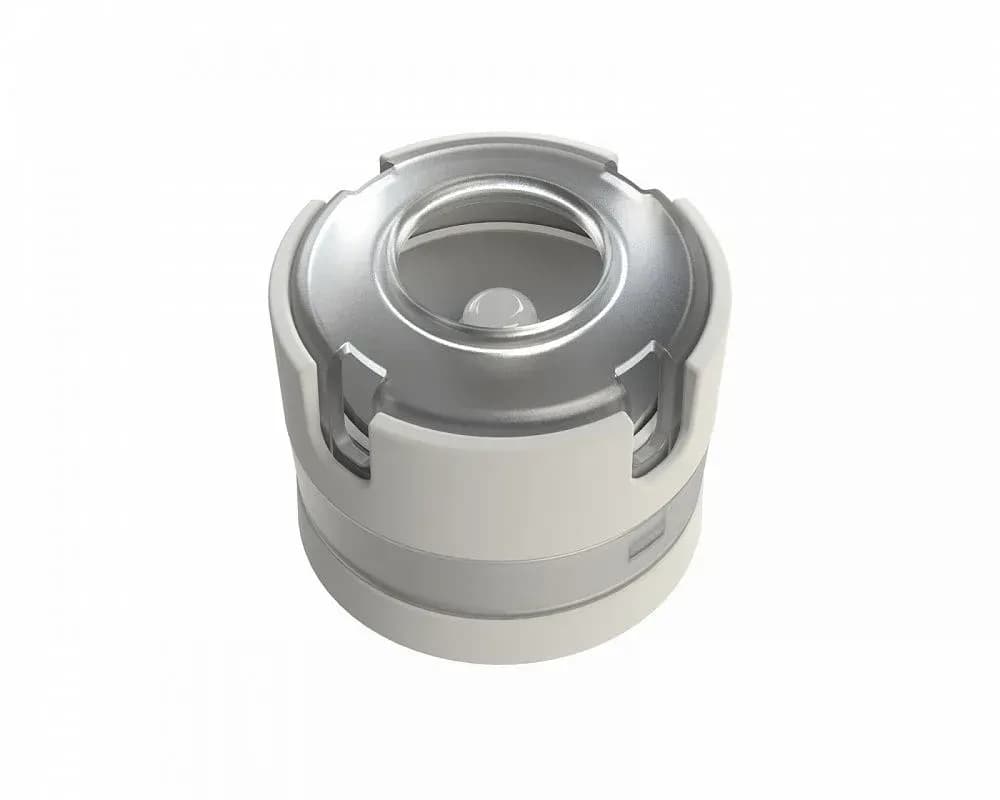

DITRA Smart Infrared Motion Sensor
Advanced Infrared Motion Sensing for Smart Lighting
The Smart Infrared Motion Sensor is a high-precision PIR sensor that detects movement by sensing heat variations emitted by people or vehicles.
It provides real-time occupancy data to luminaire controllers via the DALI protocol, enabling automatic and energy-efficient lighting control.
Best suited for environments with moderate surface temperatures, such as streets, façades, and parking areas, the sensor ensures reliable operation when there is a clear temperature contrast between moving objects and the background.
Its configurable detection range allows precise sensitivity adjustment
Seamless Integration: Fully compatible with modern lighting fixtures and smart lighting systems
Flexible Connection: Quick installation via Zhaga connector or wired interface, minimizing commissioning time and cost
Robust Design: Compact IP67-rated housing ensures durability and long-term outdoor performance
Infrared Sensing Technology: Detects thermal radiation to identify movement, optimizing lighting based on activity
Smart Communication: Uses the DALI 2.0 protocol for intelligent interaction with luminaires and control systems
Intuitive Configuration: Easily adjustable through DITRA or any other software for precise motion response
- Mechanical
Housing: protected
Material: plastic
Dimensions,mm: 49(D) x 47,5(41,8)(H)
Mass: 0.1 kg

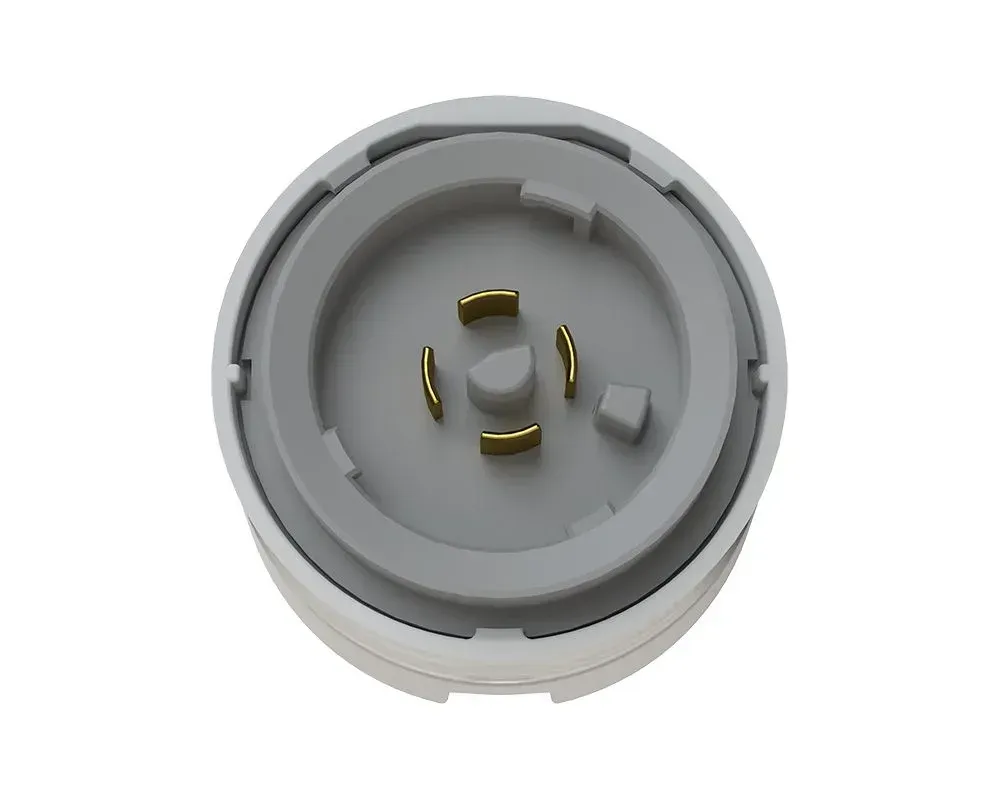

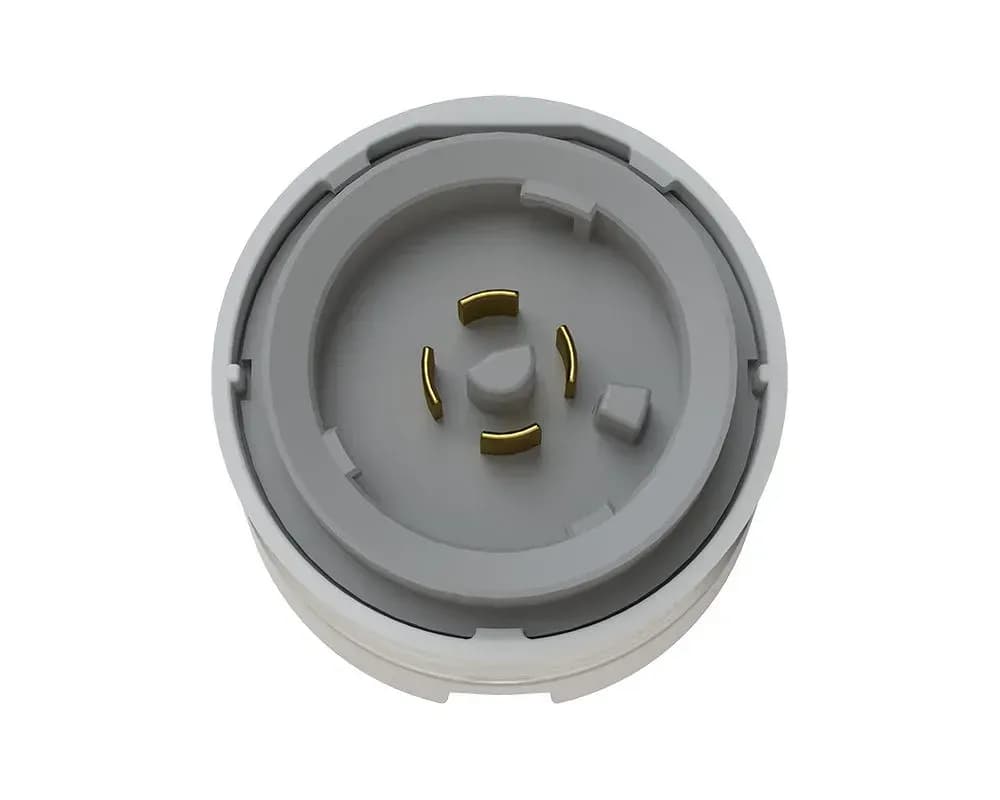

Mounting: Zhaga-type socket- Power supply
Input Voltage: –12-30 V
Input Power (max): 3 W- Environment
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 67
Certification: CB, CE, RoHS, EMC, LVD, RED, RoHS
Warranty: 5 Years- Interfaces and Protocols
Communication interface: DALI 2.0
- Inputs / Outputs
Connectors: DALI "+", DALI "-", 12-24VDC
- Configuration / Indication
Setup: Remotely using DITRA sofrware
- Package Contents
Smart Infrared Motion Sensor
Device passport
