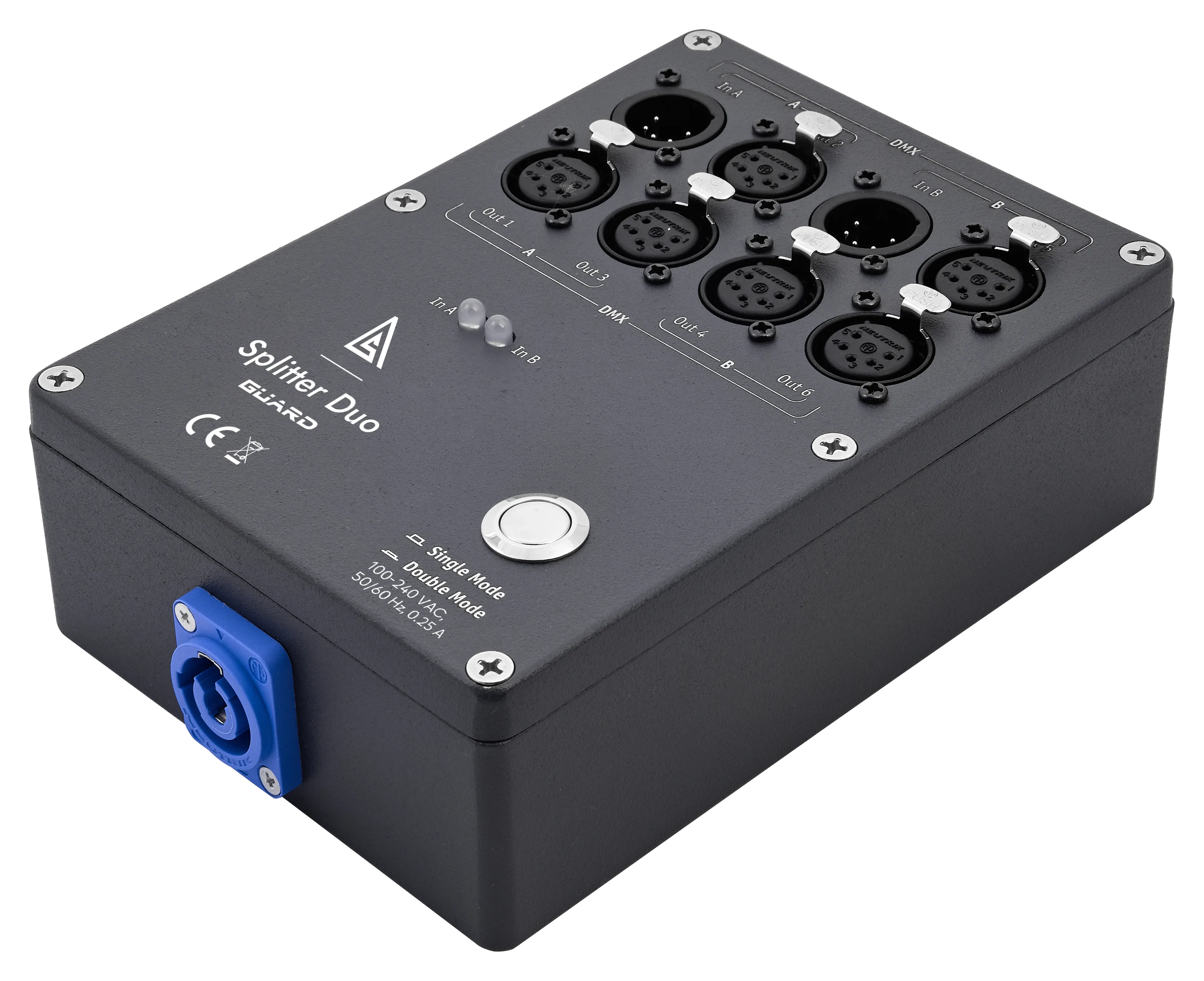

Splitter Duo Guard
Indoor 2-input DMX splitter with 4 optically isolated outputs, input backup, and RDM support
Splitter Duo Guard is a compact and reliable DMX splitter designed for indoor professional lighting systems. Featuring 2 DMX inputs and 4 galvanically isolated DMX outputs, the device can operate as a 1-to-5 splitter or as two independent 1-to-2 splitters, offering maximum versatility and built-in input redundancy.
Fully compatible with DMX512 and RDM (ANSI E1.20) protocols, the Splitter Duo Guard ensures bidirectional communication for fixture monitoring and remote configuration. All ports are protected by galvanic isolation, providing robust electrical protection and signal integrity even in complex setups.
The unit supports
Supports DMX512 and RDM (ANSI E1.20) protocols
2 DMX inputs and 4 optically isolated outputs
Configurable as a 1-to-5 splitter or dual 1-to-2 splitters
Automatic input backup and signal reservation
Bidirectional communication for RDM device feedback
LED indicators for DMX signal presence and status
Full galvanic isolation on all DMX ports
IP54-rated metal enclosure for indoor and protected environments
Passive cooling for silent, maintenance-free operation
Power supply: 100–250 V AC via PowerCON connector
Mountable on vertical/horizontal surfaces or trusses
- Mechanical
Enclosure: vandal-resistant
Material: Metal
Dimensions, mm: 178 (L) x 59,4 (H) x 121 (W)
Weight: 1.2 kg
Installation: horizontal / vertical surface- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz
Max power consumption: 5 W
Fuse: 0.5 A- Environment
Operating Temperature: 0...+60°C
Storage Temperature: -50...+70°C
Operating Relative Humidity (max): 95%
IP Rating: IP 54
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz
- Inputs / Outputs
DMX inputs: 2
DMX outputs: 6
DMX connectors: 2 XLR(3/5)M, 6 XLR(3/5)F
PowerCON port: 1- Configuration / Indication
Indicators: LED, for DMX inputs

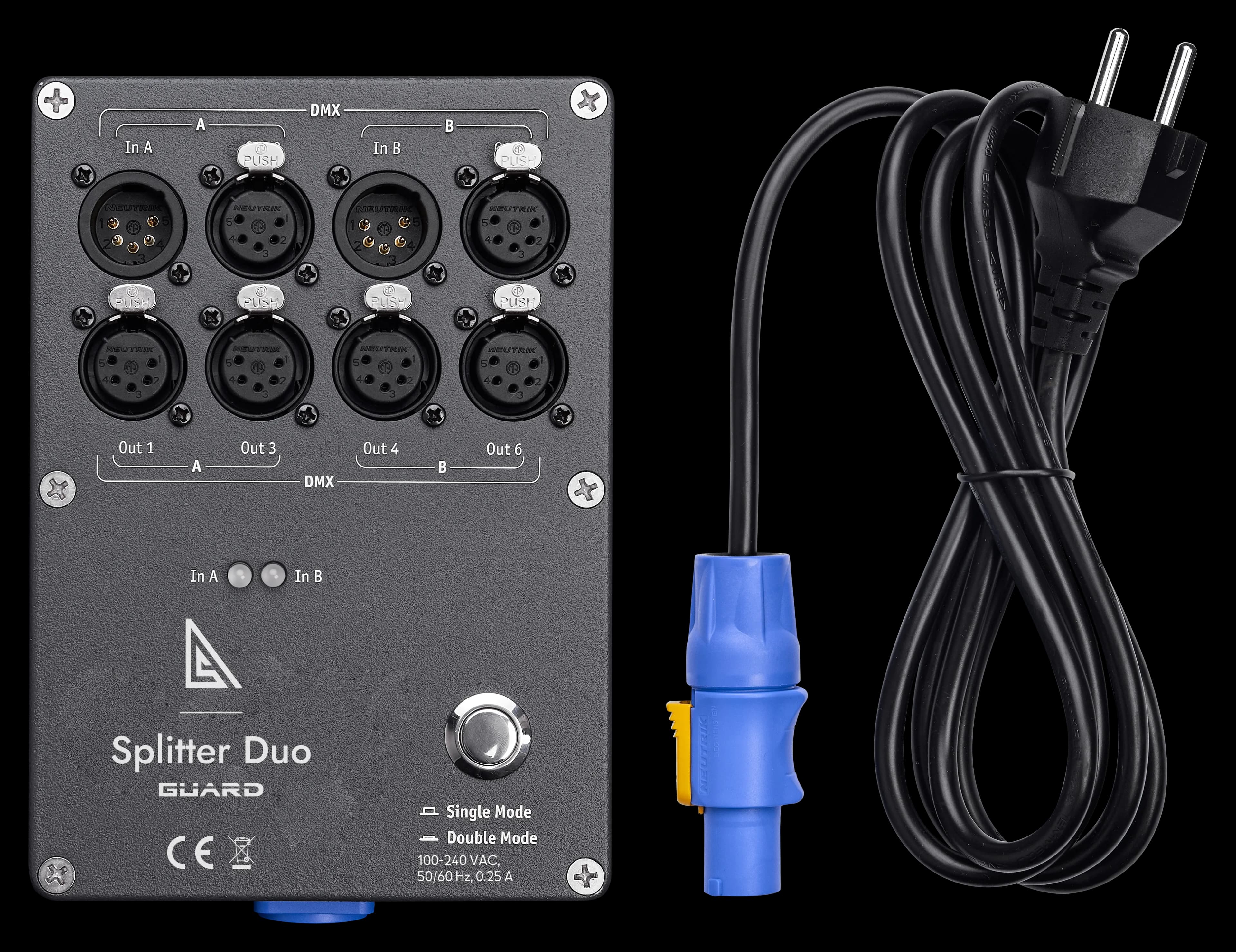

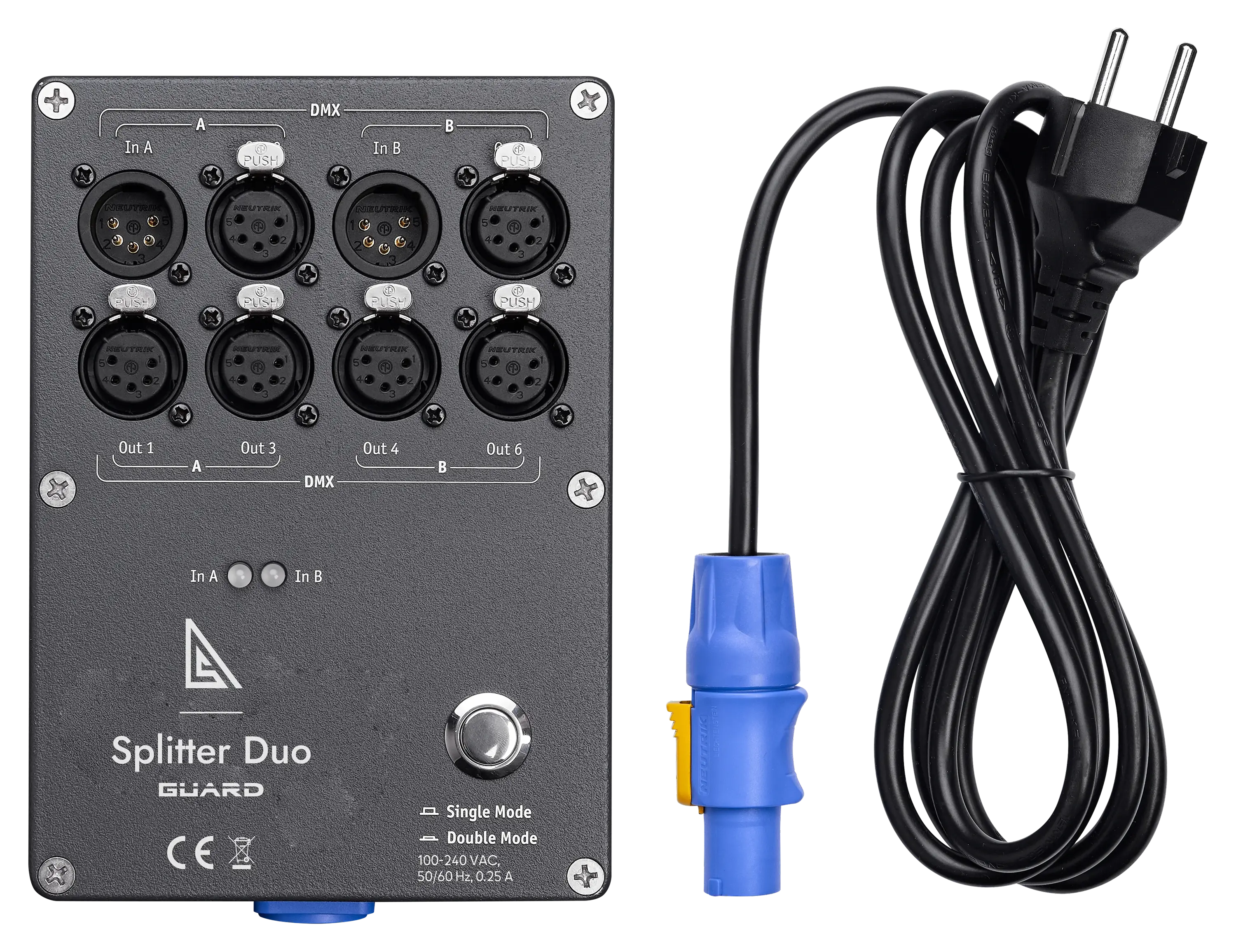

- Package Contents
Splitter Duo Guard
Power cable
