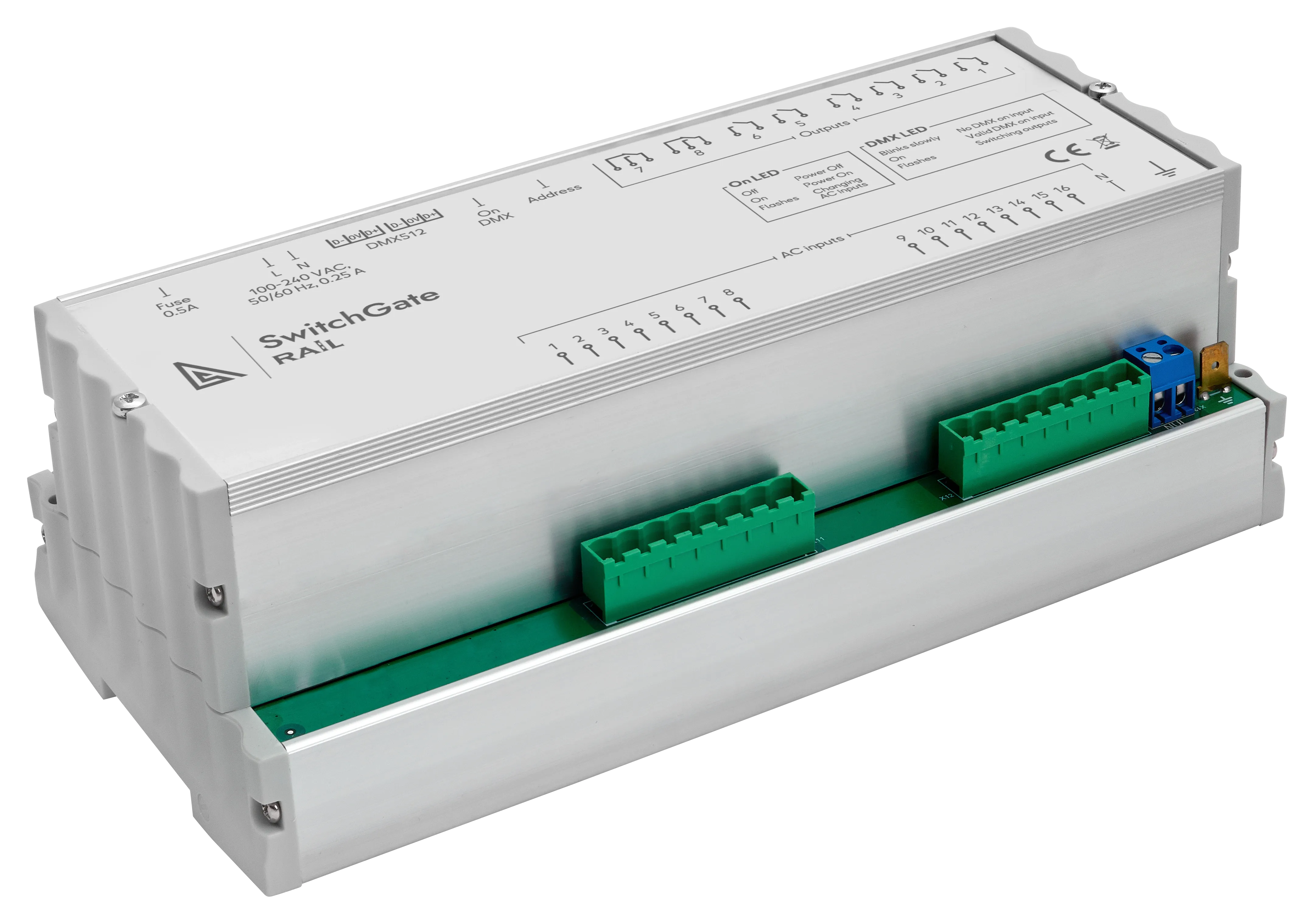

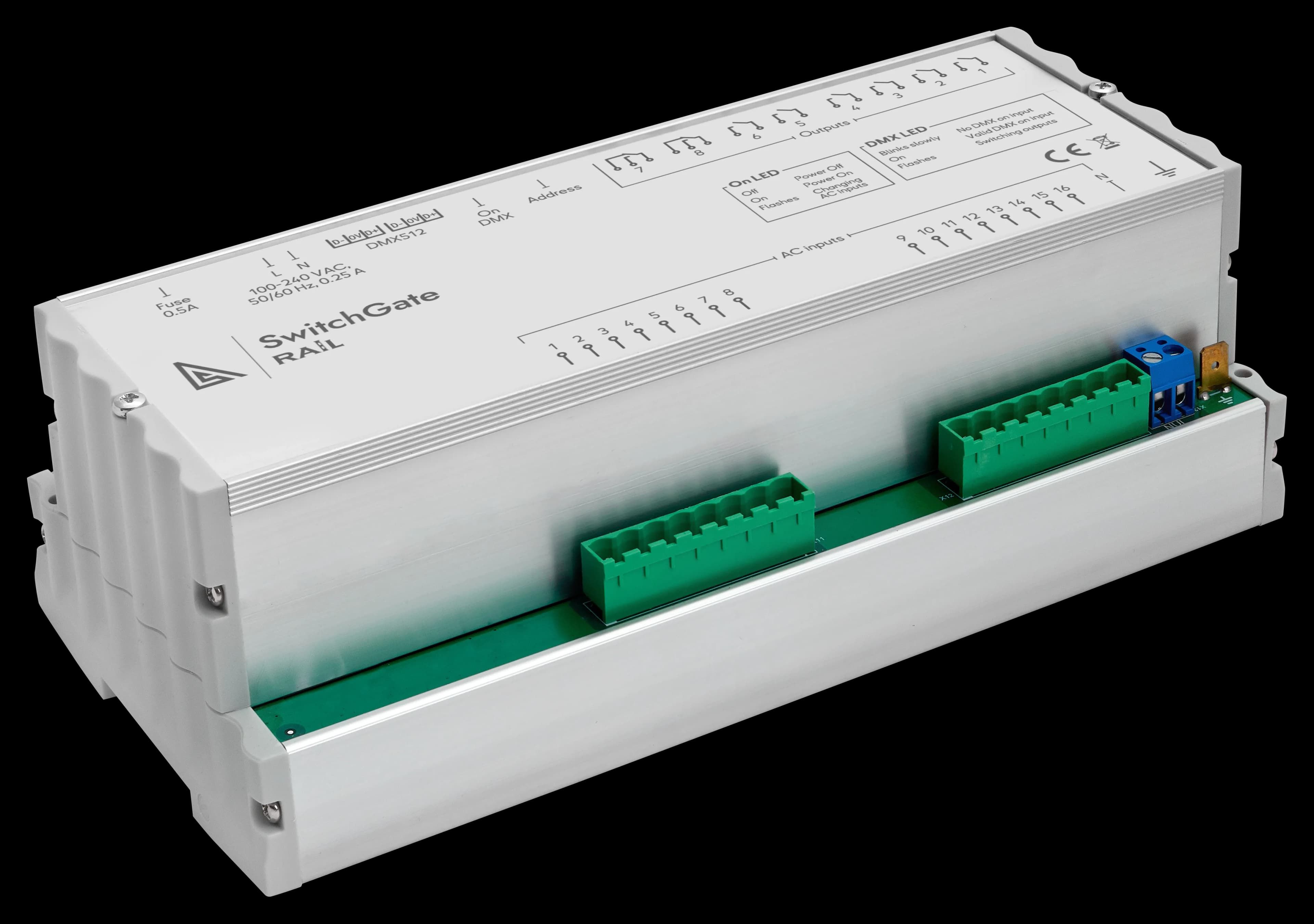

SwitchGATE Rail
SwitchGATE Rail is an advanced DMX relay switch module designed for DIN rail installation in indoor or sheltered environments. It enables on/off control of up to 8 individual power circuits directly via DMX512 commands, and provides diagnostic feedback from up to 16 AC lines using the RDM protocol (ANSI E1.20).
The device supports direct connection to power lines without additional relays or contactors, offering a space-saving and cost-efficient solution for switching lighting loads, effects, or other electrical devices. Input diagnostics can be used to monitor presence or absence of voltage — ideal for fault detection, alert trigger
Controls 8 independent relay outputs via DMX512
Provides diagnostic feedback from 16 AC inputs over RDM
DMX512 and RDM (ANSI E1.20) protocol support
DIN rail mountable, occupies 12 modules
Configurable via RDM or DIP switches
Built-in power supply (100–250 V AC)
Full galvanic isolation on DMX ports
Passive cooling for silent, maintenance-free operation
Permanent laser-etched aluminum housing
Supports input voltage detection, loss monitoring, or remote diagnostics
Ideal for use in architectural, stage, infrastructure, and building automation systems
- Mechanical
Enclosure: DIN rail (12 modules)
Material: metal, plastic
Dimensions, mm: 212 (L) x 75 (H) x 105 (W)
Weight: 0.6 kg
Installation: power supply cabinet- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz
Max power consumption: 5W
Fuse: 0.5 A- Environment
Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz
- Inputs / Outputs
DMX ports: 1
DMX connectors: terminal blocks 15EDGVC-3.81-03
Relay outputs: 8 (6 closing, 2 changeover)- Configuration / Indication
Setting: DIP switches
Indicators: LED, for DMX inputs- Package Contents
SwitchGATE Rail
Connector set
