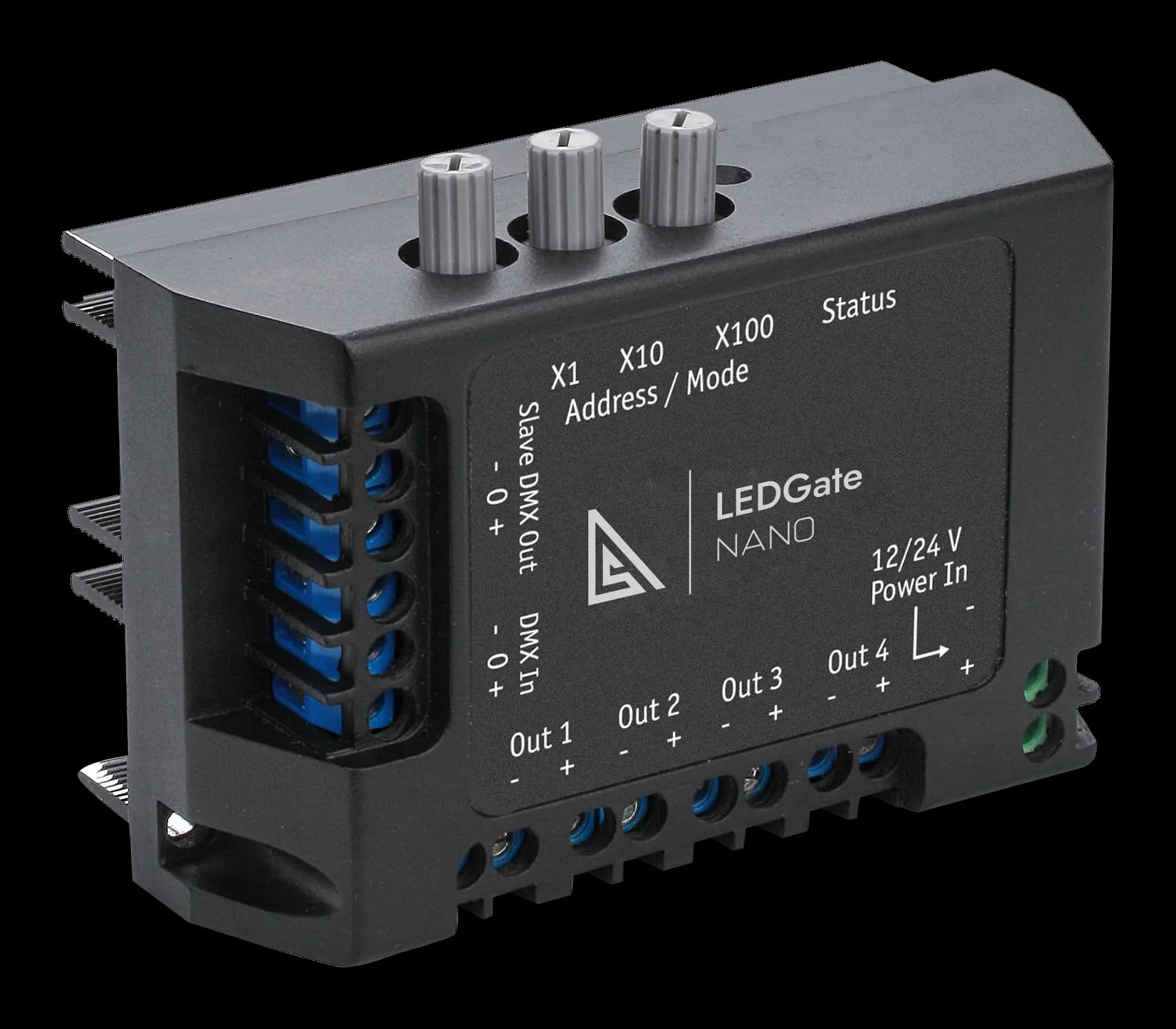

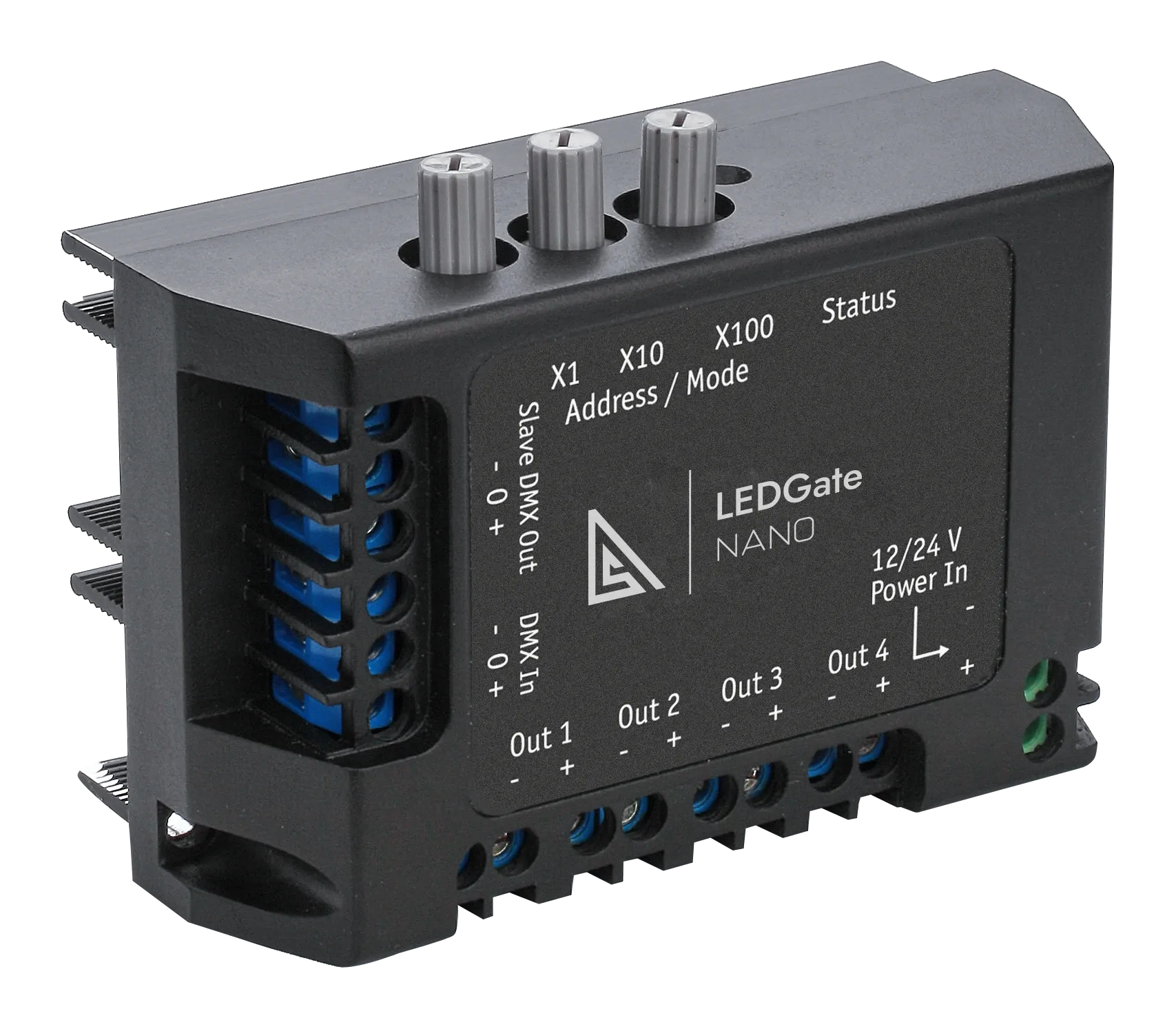

LEDGATE Nano

Ultra-compact DMX LED driver with 2 or 4 PWM channels, short-circuit protection, 8/16-bit dimming, and RDM support

LEDGATE Nano is a space-saving LED driver designed for direct control of low-voltage LED equipment through the DMX512 protocol. It supports either 2 or 4 PWM output channels, enabling dimming and on/off control of LED strips, duralight, driverless luminaires, and other 12–24 V DC LED products.

Despite its miniature size, the unit delivers precise dimming with flicker-free operation, made possible through optimized embedded algorithms. Both 8-bit and 16-bit resolution modes are supported for smooth and high-resolution light transitions.

Each output features independent short-circuit protection, and the driver is compatible with

2 or 4 PWM output channels with individual short-circuit protection

Supports DMX512 and RDM (ANSI E1.20) protocols

Selectable 8-bit or 16-bit dimming resolution

Smooth, flicker-free LED control

Power input: 12–24 V DC constant voltage

Direct connection to driverless LED strips, duralight, or fixtures

Rotary switch configuration or RDM remote management

Compact design for integration into scenery, stage props, or confined enclosures

Passive cooling with silent operation

Ideal for decorative lighting, events, theater, and OEM applications

Mechanical: Enclosure: surface mounted case
Material: metal, plastic
Dimensions, mm: 87(L) x 37(H) x 62(W)
Weight: 0.18 kg
Installation: stage equipment, lamps, etc.
Power & Electrical: Power supply: 12-24 V
Max. current per output: 5 A
Max. total current at the outputs: 20 A
Max. input power: 500 W
Environment: Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 Month
Control / Data Connections: Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz

Inputs / Outputs: DMX ports: 1
DMX connectors: terminal blocks DG306-5.0-03P
Slave ports: 1
Slave connectors: terminal blocks DG306-5.0-03P
Power In: terminal blocks PT_2.5 / 2-5.0-H-1935776
Outputs for driving LEDs: 4 terminals DG306-5.0-02P
Configuration / Indication: Setting: rotary switches
Indicators: LED, for DMX streams
Package Contents: LEDGATE Nano
