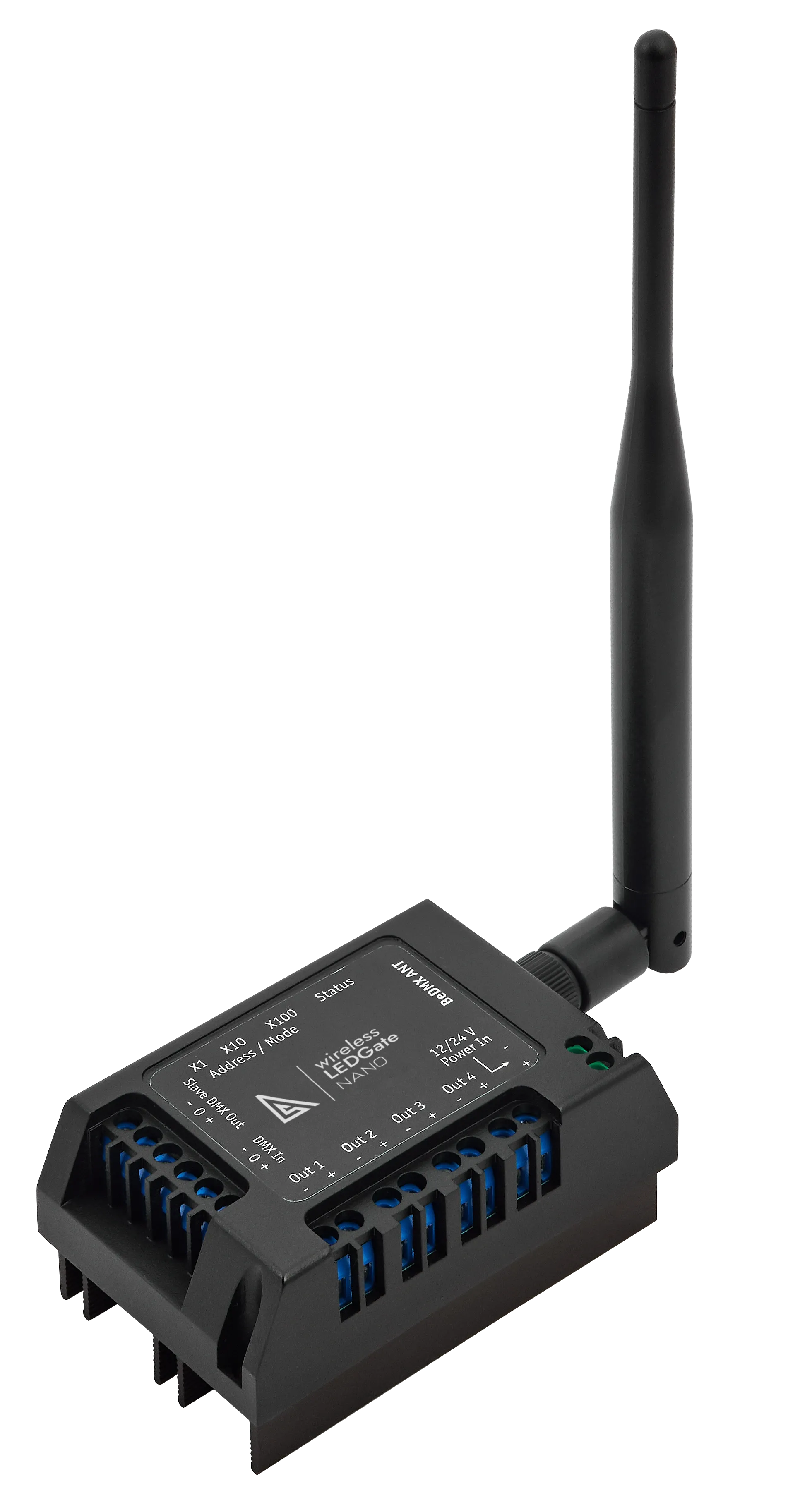

LEDGATE Wireless Nano
LEDGATE Wireless Nano is a miniature, high-performance wireless LED driver designed for direct DMX control of low-voltage LED equipment such as LED strips, duralight, and driverless luminaires. It features 2 coaxial RP-SMA antenna connectors for seamless reception of BeDMX wireless signals, based on Bluetooth 5.0 with Adaptive Frequency Hopping (AFH), offering stable operation even in RF-congested environments.
The unit can control 2 or 4 PWM channels, each with independent short-circuit protection, and supports both 8-bit and 16-bit resolution, ensuring smooth and flicker-free dimming performance across the full intensity range.
2 or 4 PWM outputs for dimmable LED control
BeDMX wireless reception via dual RP-SMA antennas
Automatic switchover between wired DMX512 and wireless BeDMX
Supports RDM (ANSI E1.20) and DMX512 protocols
Selectable 8-bit or 16-bit dimming resolution
Short-circuit protection per output channel
Flicker-free intensity control with embedded smoothing algorithm
Rotary switch or RDM-based configuration
Power input: 12–24 V DC
Ultra-compact size for embedded or mobile use
Ideal for theatrical scenery, event staging, LED signage, and OEM solutions
- Mechanical
Housing: Surface mounted case
Material: Metal, Plastic
Dimensions, mm: 87(L) x 37(H) x 62(W)
Mass: 0.2 kg- Power & Electrical
Power supply: 12/24 VDC
Max current per output: 20 A
Input Power (max): 500 W- Environment
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 Month- Control / Data Connections
Control interface: BeDMX, DMX512
Transmission range (standard antenna): 100 m
RF band: 2.4 GHz
- Inputs / Outputs
LED outputs: 2 or 4
Wireless interface: 1
DMX512 interfaces: 1
Slave interface: 1
Connectors: Screw terminals- Configuration / Indication
Setup: DIP rotor switchers
Indication: LED for DMX/BeDMX activity- Package Contents
LEDGATE Wireless Nano
2.4 Ghz Antenna
