Splitter Selective Prime

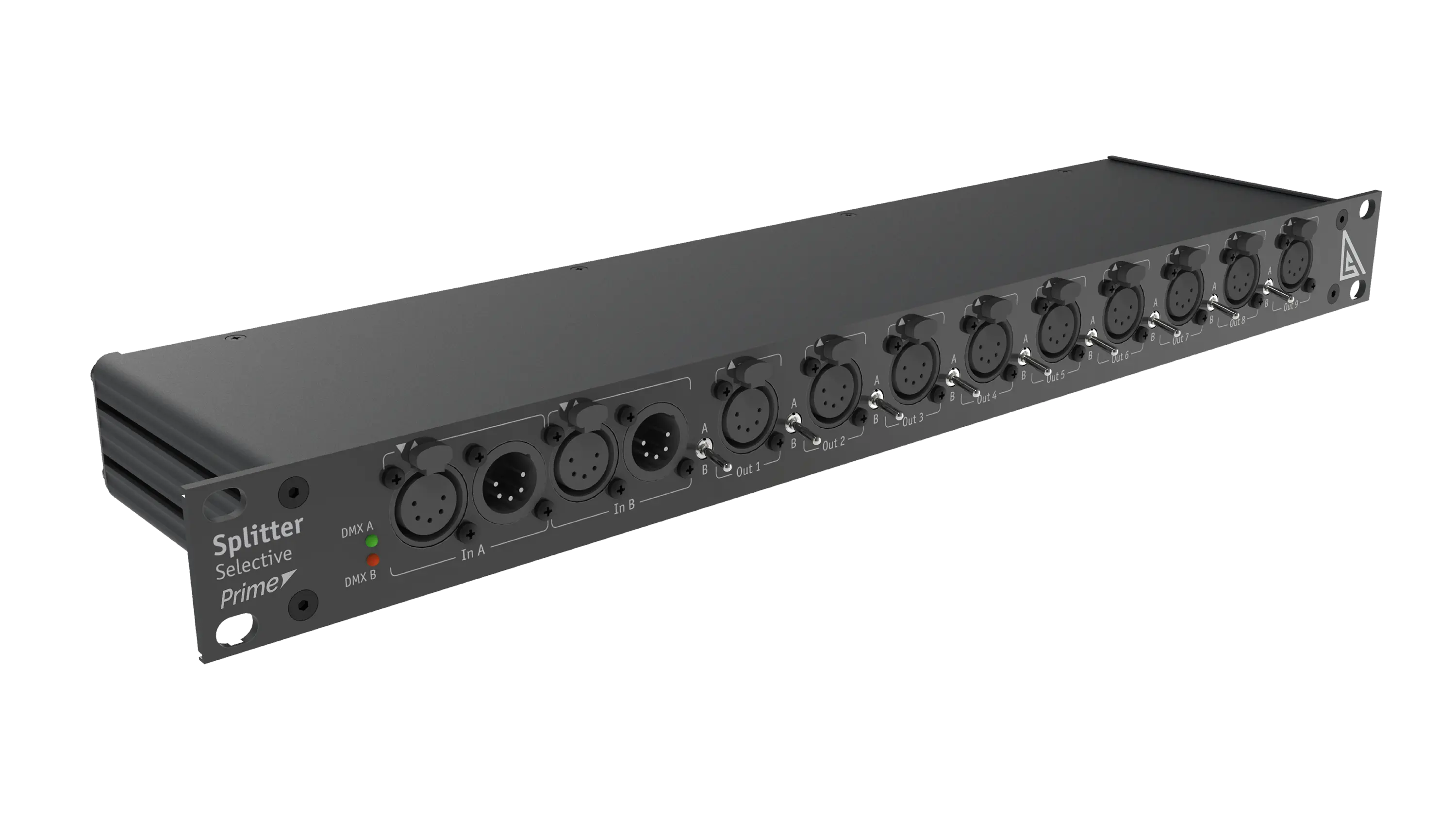

Splitter Selective Prime is a professional-grade DMX512 splitter and booster with full RDM (ANSI E1.20) support, designed for demanding lighting control environments. The unit features two DMX inputs and nine optically isolated outputs, supporting both single- and dual-universe operation with per-port input source selection.
In single-input mode, the unit distributes the incoming DMX signal from input A to up to ten outputs (A + 9). In dual-input mode, DMX inputs A and B can each route signals to selected output ports independently, allowing flexible distribution of two separate universes. Each port’s assignment
2 DMX inputs, 9 output ports with per-port signal source selection
Supports DMX512 and RDM (ANSI E1.20) protocols
RDM filtering for improved bus stability
5kV galvanic isolation and TVS surge protection on all ports
Intelligent signal presence and activity indication
Pass-through DMX (THRU) port
Rack-mount 1U enclosure, depth 110 mm
IP54 rating for indoor and sheltered use

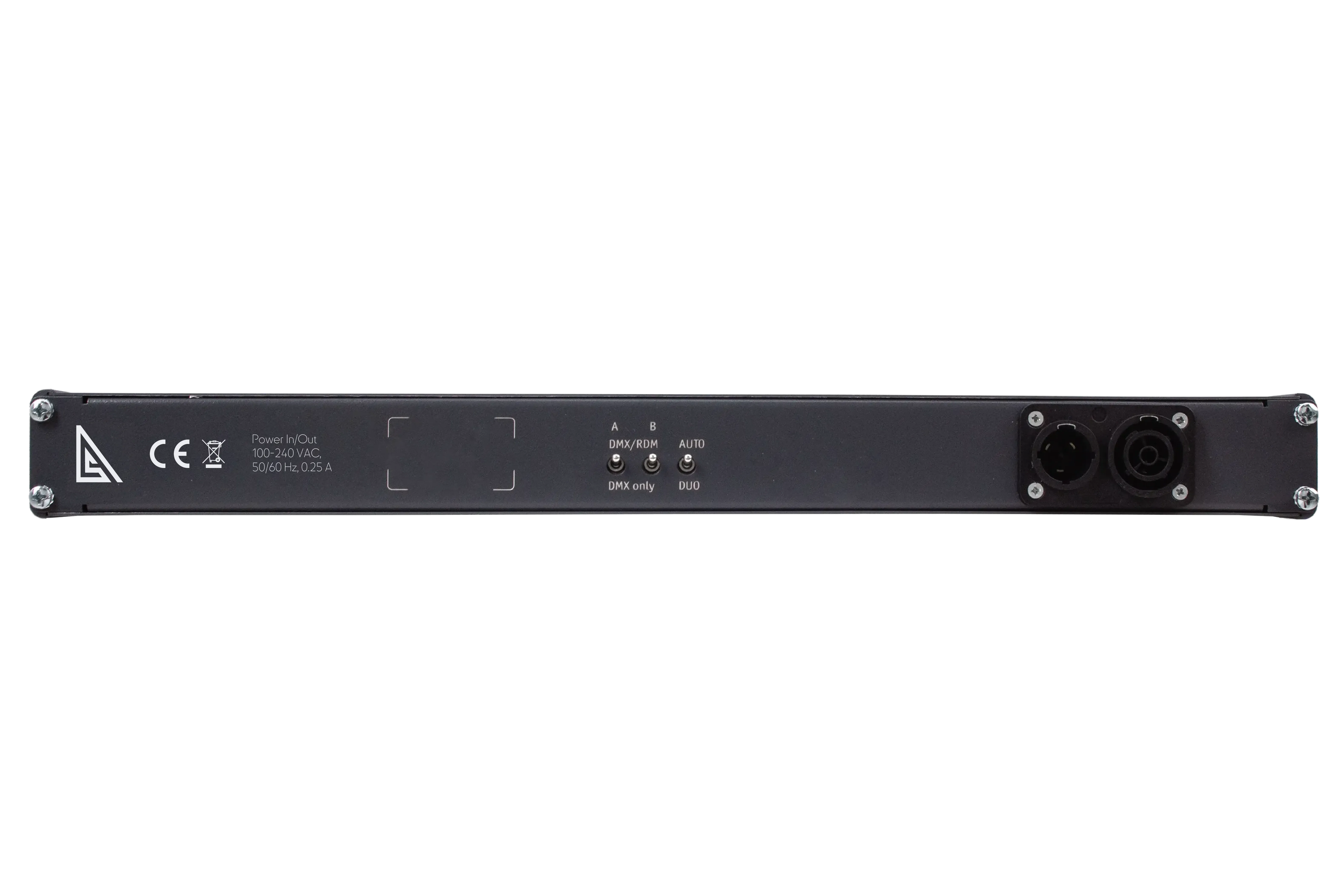

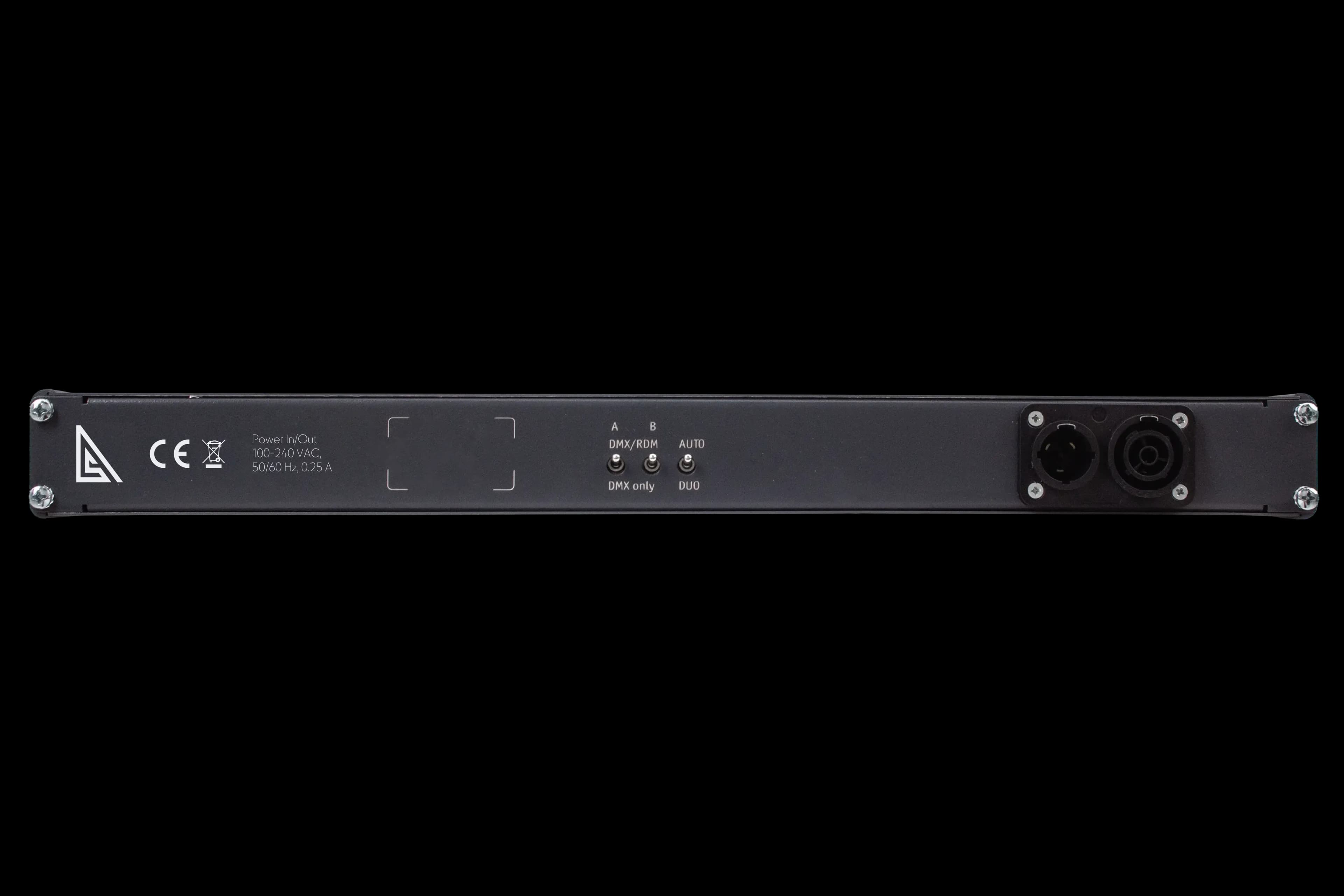

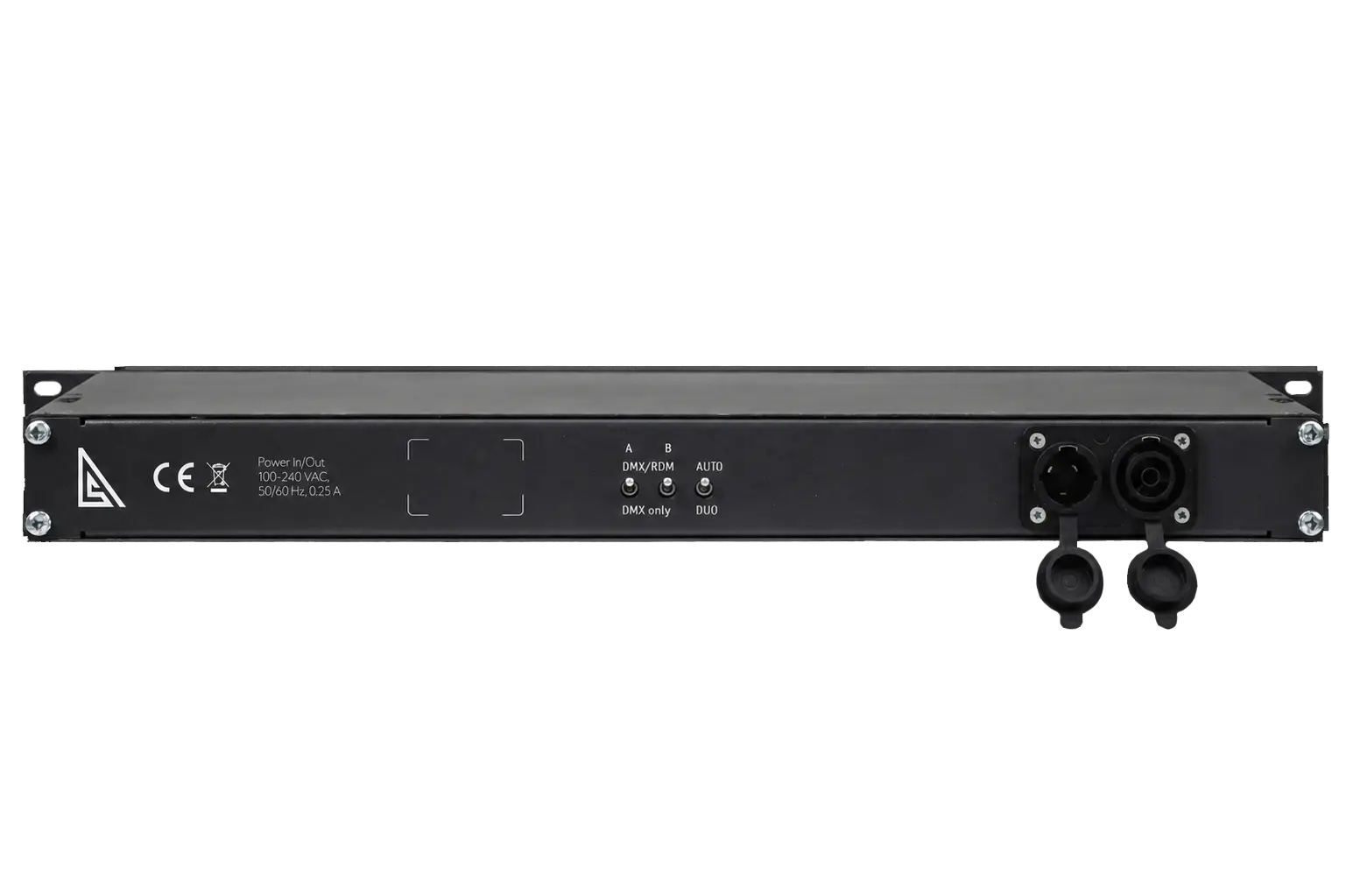

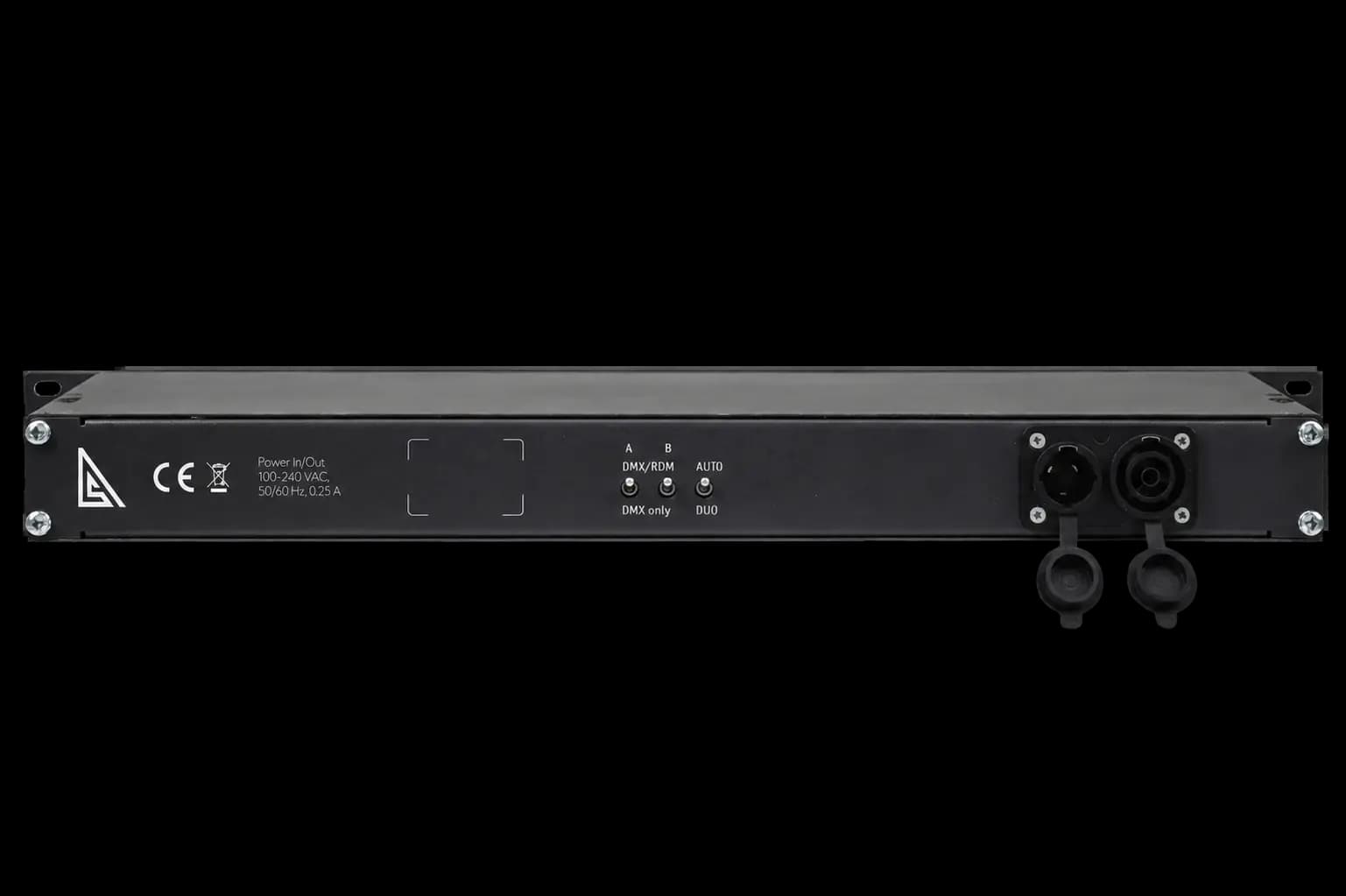

PowerCON TRUE1 AC input (100–277V AC) and optional 9–36V DC input
Available with 3-pin or 5-pin XLR connectors
Zero-latency signal regeneration
Natural cooling without fans or vents
- Mechanical

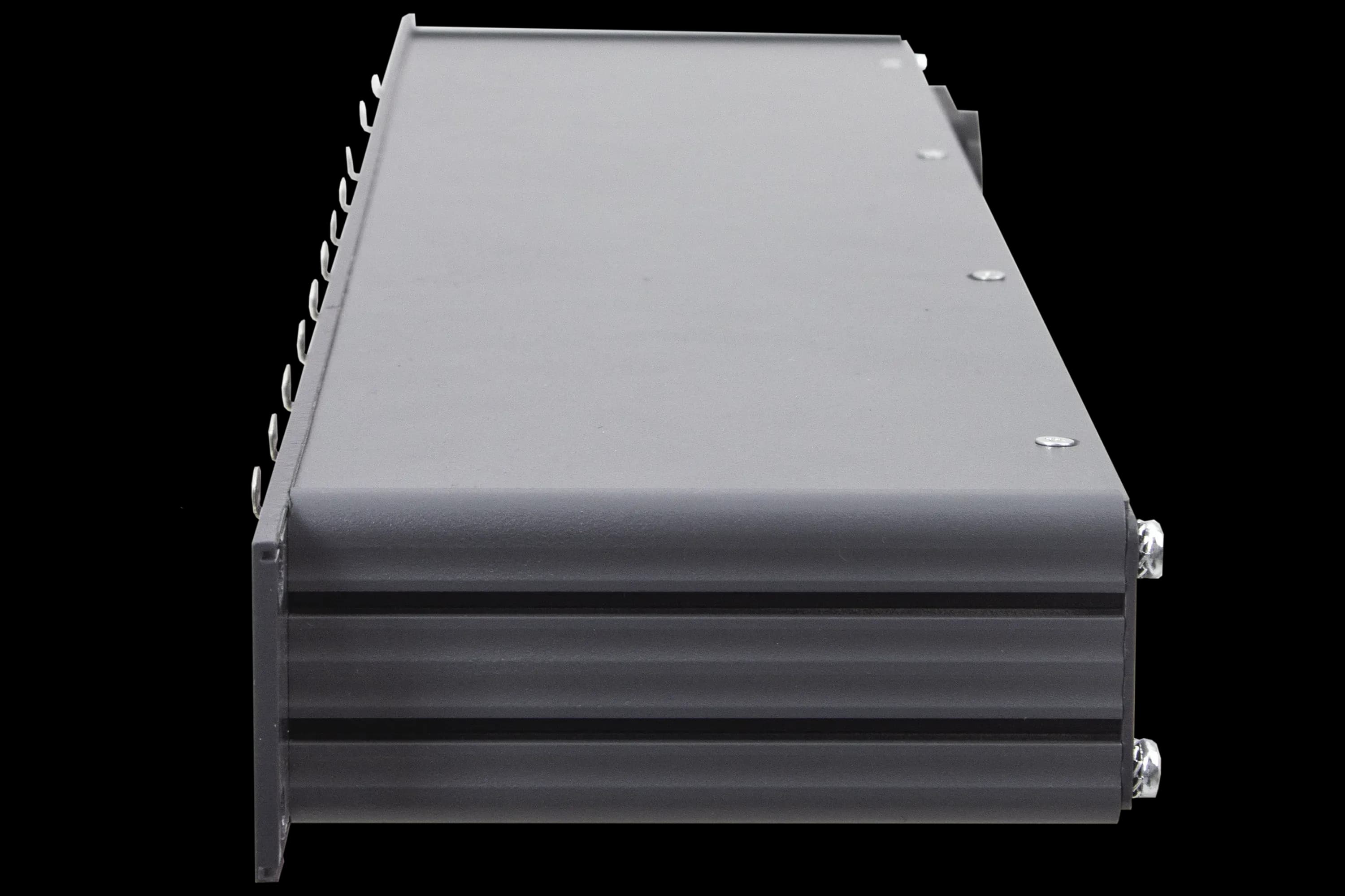

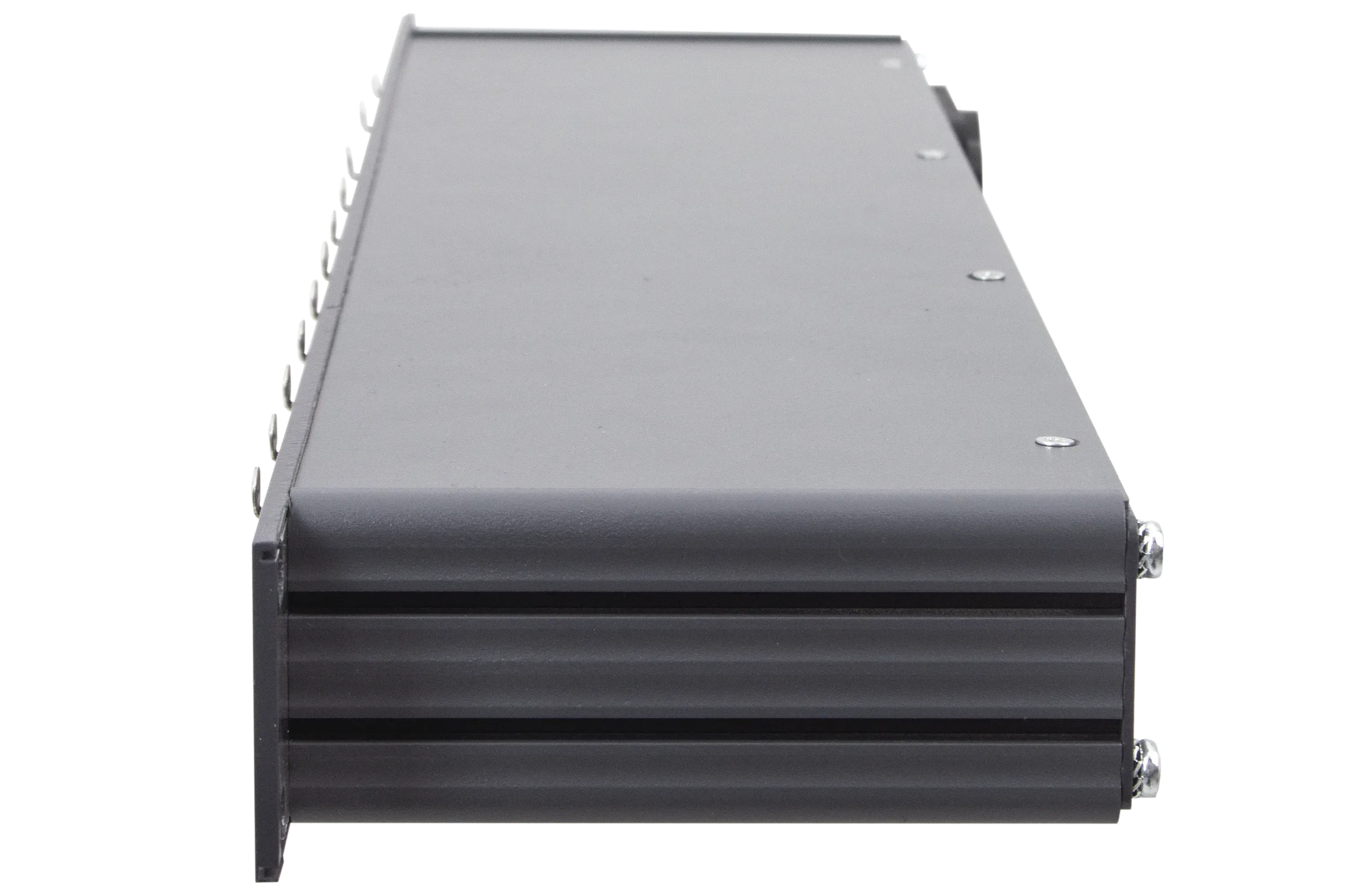

Case: metal rack mount
Material: metal
Dimensions, mm: 482 (L) x 44 (H) x 110 (W)
Weight: 1.2 kg
Mounting: rack mount, 1U- Power & Electrical
Power supply voltage: ~100-270 V, 50/60 Hz
Max. power consumption: 5 W
Fuse: 0.5 A- Environment
Operating temperature range: 0...+60°C
Storage temperature range: -50...+70°C
Max. relative humidity: 95%
Ingress protection rating: IP 54
Certificates: EAC, CE, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM (ANSI E1.20)
DMX data refresh rate: 44 Hz
- Inputs / Outputs
DMX inputs:
single-channel mode - 1 input port
dual-channel mode - 2 input ports
DMX outputs:
single-channel mode - 10 output ports
dual-channel mode - 9 output ports
DMX connectors: 2 XLR(3/5)M, 11 XLR(3/5)F
Power connector: PowerCON (TRUE1)- Configuration / Indication
Indicators: LED, for DMX inputs
- Package Contents
Splitter Selective Prime
Power cord
User manual
