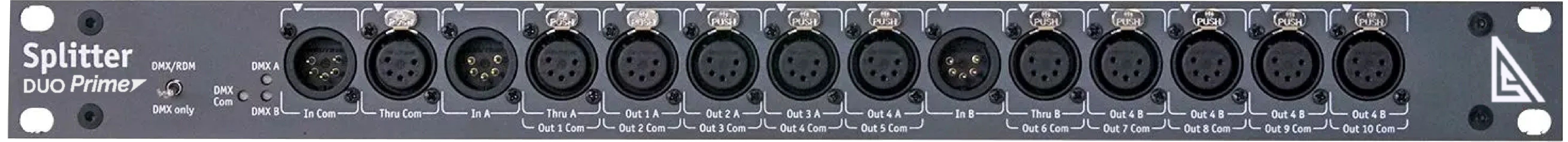

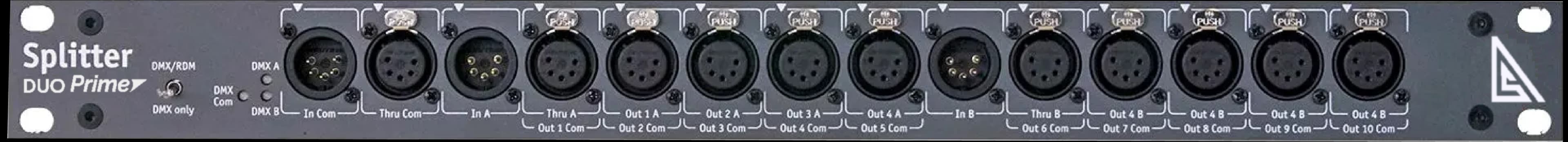

Splitter Duo Prime
Splitter Duo Prime is a professional two-channel DMX512 signal splitter designed for efficient control of lighting equipment operating on the DMX512 standard. It supports transmission of DMX512 and RDM (ANSI E1.20) protocols from one or two inputs to five or ten outputs, using XLR (5-pin or 3-pin) or EtherCON connectors.
The unit features intelligent indication to display DMX512 signal presence, active data transmission, and detection of RDM (ANSI E1.20) interface signals. A dedicated switch enables RDM protocol filtering when required, and several additional DMX THRU ports are provided for extended connectivity.
Splitter Duo P
1U rackmount form factor with a depth of 110 mm and IP54 protection
Maintains operation at voltages up to 305 V
Support for three DMX THRU pass-through ports
Compatibility with DMX512 and RDM (ANSI E1.20) protocols
Intelligent operating mode indication
RDM (ANSI E1.20) protocol filtering function
DMX512 and RDM (ANSI E1.20) redundancy mode
Galvanic isolation of DMX ports
Passive cooling without fans or ventilation holes in the housing
PowerCON TRUE1 standard power connector
- Mechanical
Housing: Short 1U Rack
Material: metal
Dimensions, mm: 482 (L) x 44 (H) x 110 (W)
Weight: 1.2 kg
Mounting: in a rack, 1 module- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz
Max power consumption: 5W
Fuse: 0.5 A- Environment
Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: IP 54
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz
- Inputs / Outputs
DMX Inputs: 1 or 3
DMX Outputs: 8 or 10
DMX connectors: 3 XLR (3/5 / etherCON) M, 11 XLR (3/5 / etherCON) F
PowerCON ports: 1 (TRUE1)- Configuration / Indication
Indicators: LED, for DMX inputs
- Package Contents
Splitter DUO Prime

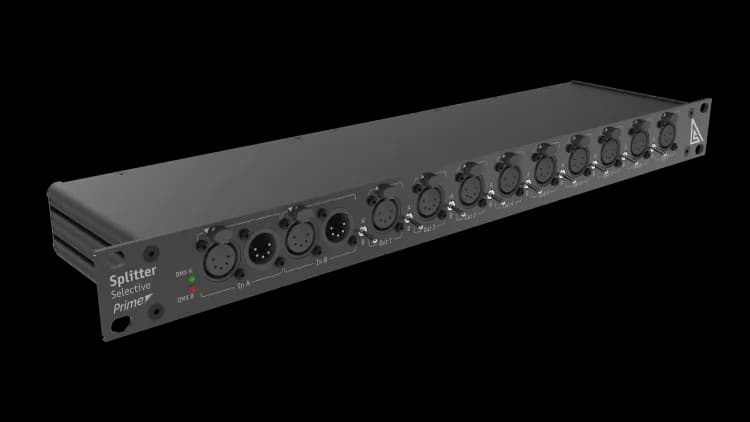

Splitter Selective Prime
